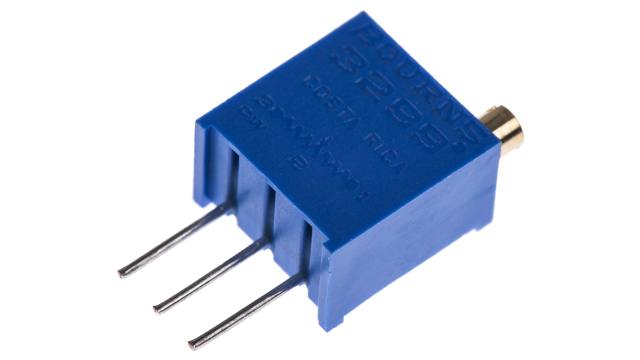

1 kΩ, Surface Mount Trimmer Potentiometer, J-Hook 0.25 W Top Adjust Bourns, 3214 | 3214W-1-102E
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 6 pcs
Mfr. Part No: 3214W-1-102E
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Bourns |
| Maximum Resistance | 1kΩ |
| Product Type | Trimmer Potentiometer |
| Mount Type | Surface Mount |
| Number of Turns | 5 |
| Packaging | Tape & Reel |
| Orientation | Top Adjust |
| Power Rating | 0.25W |
| Series | 3214 |
| Termination Style | J-Hook |
| Automotive Standard | No |
| Tolerance ± | 10% |
| Temperature Coefficient | ±100 ppm/°C |
| Minimum Operating Temperature | -65°C |
| Shaft Diameter | 1.5mm |
| Shaft Length | 0.6mm |
| Length | 4.8mm |
| Maximum Operating Temperature | 150°C |
| Standards/Approvals | EIAJ, EIA, IPC, UL, VECI SMD, RoHS |
| Height | 5.1mm |
| Depth | 3.9mm |
| Element Material | Cermet |
Product Details
5-Turn 250mW 4mm Sealed 3214W Series
Bourns® 3214W Series 4mm Sealed 5-Turn Trimpot® Trimming Potentiometer
Miniature (nominal 4mm square case size)
Excellent mounting efficiency
Suitable for flow/reflow soldering/hand solder
Straight slot TOP adjuster
Meets standard EIA and EIAJ footprint
Multi-Turn Surface Mount Trimmers
