Assemtech SPNO PCB Reed Switch 500 mA 400 V ac/dc | 2502-2314-020
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 9 pcs
Mfr. Part No: 2502-2314-020
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Assemtech |
| Product Type | Reed Switch |
| Contact Configuration | SPNO |
| Maximum Switching Current | 500mA |
| Maximum Switching Power | 10VA |
| Maximum Switching Voltage | 400V ac/dc |
| Contact Resistance | 150mΩ |
| Contact Material | Rhodium |
| Maximum Release Time | 0.05ms |
| Operating Time Including Bounce | 0.2ms |
| AT Value Range | 10 to 35 AT |
| Terminal Type | Wire |
| Mount Type | PCB |
| Minimum Operating Temperature | -40°C |
| Width | 2.3 mm |
| Maximum Operating Temperature | 125°C |
| Series | GC |
| Standards/Approvals | ISO |
| Length | 55mm |
Product Details
Form A & C Reed Switches
These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations

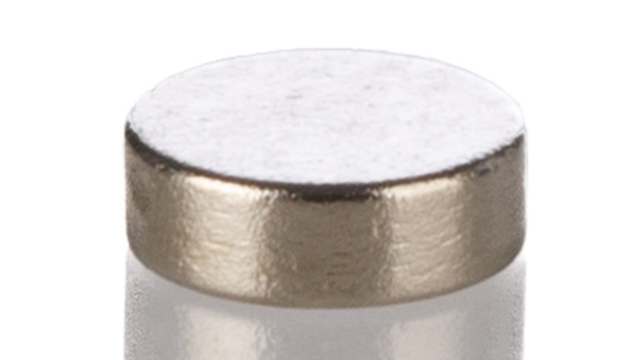

For suitable magnets, see stk. no 362-2401 typically
Approvals
UL, CSA
