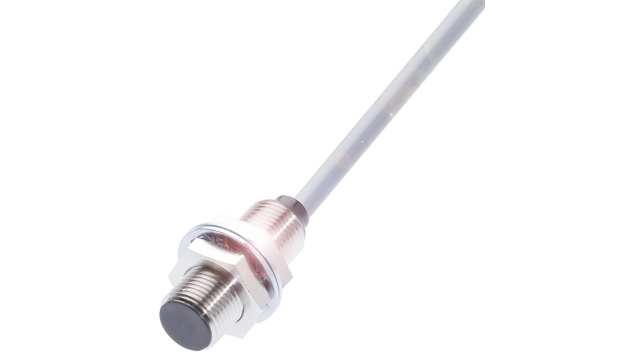

BALLUFF Capacitive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 10 → 30 V dc | BCS M12B4G2-PSC40D-S04K
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 6 pcs
Mfr. Part No: BCS M12B4G2-PSC40D-S04K
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | BALLUFF |
| Thread Size | M12 |
| Sensor Technology | Capacitive |
| Body Style | Threaded Barrel |
| Detection Range | 4 mm |
| Output Function | NO |
| Digital Switching Output Type | PNP |
| Connection Type | M12 |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP67 |
| Length | 75mm |
| Mounting Type | Flush |
| Housing Material | PBT |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -30°C |
| Maximum Switching Frequency | 100Hz |
| Short Circuit Overload Protection | Yes |
| Switching Current | 100 mA |
| Standards Met | CE, cULus Listed |
| Switching Frequency | 100 Hz |
| Shielding | Shielded |
| Reverse Polarity Protection | Yes |
| Series | M12 |
| Maximum Operating Temperature | +85°C |
Product Details
BCS Standard Cylinder Capacitive Sensors
BCS capacitive sensors monitor and detect stack heights and levels as well as the presence of objects and content in glass, plastic or paper packages all with extreme precision. The BCS range are unaffected by dust, surface reflections or any object composition such as colour or texture. Capacitive sensors can also detect levels of solids or liquids with reliability through glass and plastic walls. This diverse series consists of high temperature and pressure ratings with stainless steel and PTFE housings for harsh environments.
Flush, not flush
Tubular / cylinder housing
Cable with connector, connector, cable
DC 3 wire
M12, M18
LED
Object detection, level detection
Short circuit protected
Polarity reversal
IP67
Tubular / cylinder housing
Cable with connector, connector, cable
DC 3 wire
M12, M18
LED
Object detection, level detection
Short circuit protected
Polarity reversal
IP67
