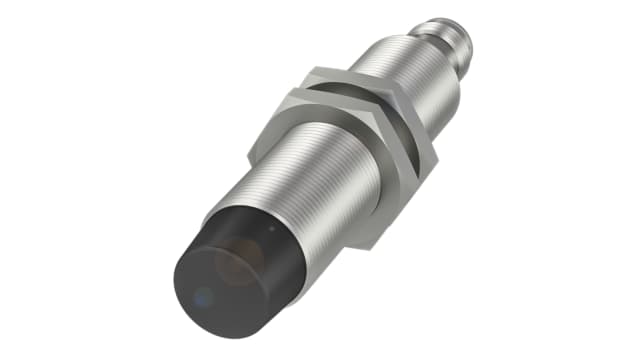

BALLUFF Capacitive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 10 → 30 V dc | BCS M12B4I1-PSC40D-EP02

Name: BALLUFF Capacitive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 10 → 30 V dc | BCS M12B4I1-PSC40D-EP02
SKU: 6347-209
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 11 pcs

Mfr. Part No: BCS M12B4I1-PSC40D-EP02

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 6347-209 Categories: BALLUFF, Proximity Sensors

Description

Specifications

Attribute	Value
Brand	BALLUFF
Thread Size	M12
Sensor Technology	Capacitive
Detection Range	4 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	61mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	PBT
Maximum DC Voltage	30V
Minimum Operating Temperature	-30°C
Switching Current	100 mA
Reverse Polarity Protection	Yes
Switching Frequency	100 Hz
Standards Met	CE, cULus Listed
Series	M12
Short Circuit Overload Protection	Yes
Maximum Switching Frequency	100Hz
Shielding	Shielded
Maximum Operating Temperature	+85°C

Product Details

BCS Standard Cylinder Capacitive Sensors

BCS capacitive sensors monitor and detect stack heights and levels as well as the presence of objects and content in glass, plastic or paper packages all with extreme precision. The BCS range are unaffected by dust, surface reflections or any object composition such as colour or texture. Capacitive sensors can also detect levels of solids or liquids with reliability through glass and plastic walls. This diverse series consists of high temperature and pressure ratings with stainless steel and PTFE housings for harsh environments.

Flush, not flush
Tubular / cylinder housing
Cable with connector, connector, cable
DC 3 wire
M12, M18
LED
Object detection, level detection
Short circuit protected
Polarity reversal
IP67
