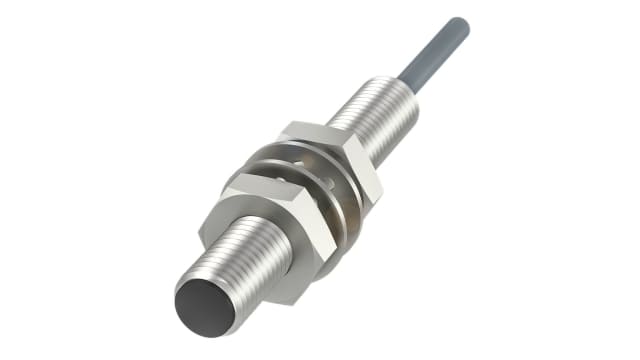

BALLUFF Capacitive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 12 → 35 V dc | BCS M12T4D2-PSM40C-S04G
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 5 pcs
Mfr. Part No: BCS M12T4D2-PSM40C-S04G
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | BALLUFF |
| Thread Size | M12 |
| Sensor Technology | Capacitive |
| Body Style | Threaded Barrel |
| Detection Range | 4 mm |
| Digital Switching Output Type | PNP |
| Output Function | NO |
| Connection Type | M12 |
| Supply Voltage | 12 → 35 V dc |
| IP Rating | IP65 |
| Length | 60mm |
| Mounting Type | Flush |
| Housing Material | Stainless Steel |
| Maximum DC Voltage | 35V |
| Minimum Operating Temperature | -30°C |
| Switching Current | 200 mA |
| Maximum Switching Frequency | 100Hz |
| Shielding | Shielded |
| Reverse Polarity Protection | Yes |
| Standards Met | CE, cULus, IEC 60947-5-2 |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 100 Hz |
| Short Circuit Overload Protection | Yes |
Product Details
BCS Standard Cylinder Capacitive Sensors
BCS capacitive sensors monitor and detect stack heights and levels as well as the presence of objects and content in glass, plastic or paper packages all with extreme precision. The BCS range are unaffected by dust, surface reflections or any object composition such as colour or texture. Capacitive sensors can also detect levels of solids or liquids with reliability through glass and plastic walls. This diverse series consists of high temperature and pressure ratings with stainless steel and PTFE housings for harsh environments.
Flush, not flush
Tubular / cylinder housing
Cable with connector, connector, cable
DC 3 wire
M12, M18
LED
Object detection, level detection
Short circuit protected
Polarity reversal
IP67
Tubular / cylinder housing
Cable with connector, connector, cable
DC 3 wire
M12, M18
LED
Object detection, level detection
Short circuit protected
Polarity reversal
IP67
