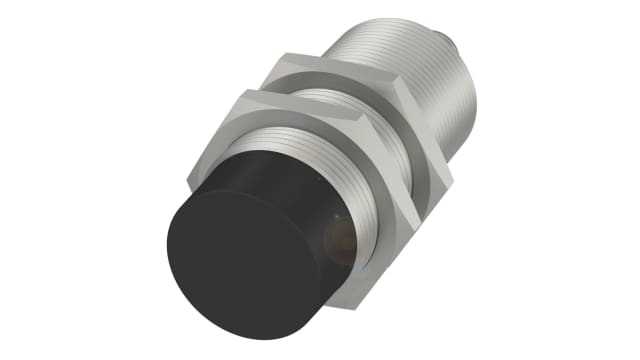

BALLUFF Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 30 V dc | BCS M30BBI1-PSC15D-EP02
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 9 pcs
Mfr. Part No: BCS M30BBI1-PSC15D-EP02
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | BALLUFF |
| Thread Size | M30 |
| Sensor Technology | Capacitive |
| Body Style | Threaded Barrel |
| Detection Range | 15 mm |
| Digital Switching Output Type | PNP |
| Output Function | NO |
| Cable Length | 2m |
| Connection Type | Pre-Cabled |
| Supply Voltage | 10 → 30 V dc |
| Length | 66.5mm |
| IP Rating | IP67 |
| Mounting Type | Flush |
| Housing Material | PBT |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100 mA |
| Maximum Switching Frequency | 100Hz |
| Shielding | Shielded |
| Standards Met | CE, cULus Listed |
| Maximum Operating Temperature | +85°C |
| Reverse Polarity Protection | Yes |
| Switching Frequency | 100 Hz |
| Short Circuit Overload Protection | Yes |
Product Details
BCS GlobalProx Flush Capacitive Sensors
BCS capacitive sensors monitor and detect stack heights and levels as well as the presence of objects and content in glass, plastic or paper packages all with extreme precision. The BCS range are unaffected by dust, surface reflections or any object composition such as colour or texture. Capacitive sensors can also detect levels of solids or liquids with reliability through glass and plastic walls. This diverse series consists of high temperature and pressure ratings with stainless steel and PTFE housings for harsh environments. Flush for object detection and non-flush for level detection
M12, M18, M30
Flush
Connector, cable
IP67
Flush
Connector, cable
IP67
