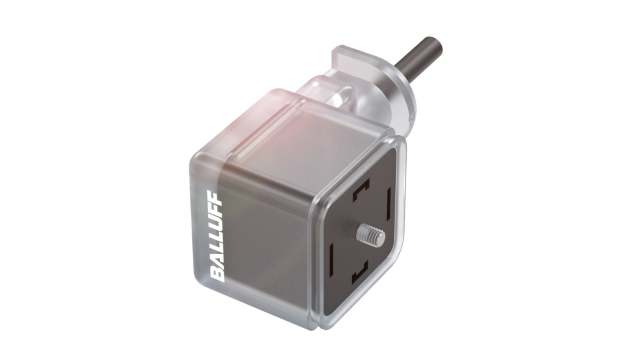

BALLUFF Circular Connector, 3 Contacts, Cable, M8 Connector, Plug, Male, IP67, BCC0HLP Series | BCC0HLP

Name: BALLUFF Circular Connector, 3 Contacts, Cable, M8 Connector, Plug, Male, IP67, BCC0HLP Series | BCC0HLP
SKU: 5010-242
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 9 pcs

Mfr. Part No: BCC0HLP

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 5010-242 Categories: BALLUFF, Industrial Circular Connectors

Description

Specifications

Attribute	Value
Brand	BALLUFF
Product Type	Circular Connector
Number of Contacts	3
Mount Type	Cable
Current	4A
Connector Size	M8
Plug/Socket	Plug
Contact Gender	Male
IP Rating	IP67
Orientation	Straight
Series	BCC0HLP
Coding	A
Voltage	60 V ac, 60 V dc
Mating Type	Threaded
Termination Type	Screw
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	80°C
Housing Material	Die Cast Zinc, Polyamide
Pole Format	3
Standards/Approvals	CE EAC WEEE
Contact Material	Bronze

Product Details

The Balluff field attachable connector is used for the secure transmission of signals, data and power. It has M8x1-male, straight, 3-pin, A-coded connection with 3 connectable contacts and 4.0 A rated current (at 40 °C).

IDC wire mounting

0.08 to 0.25 mm² connection cross-section

2.5 to 5.2 mm cable diameter D

60 VDC / 60 VAC Operating voltage Ub

IP67 protection rating

-25 °C to 80 °C ambient temperature

CE, EAC, WEEE Approval/Conformity
