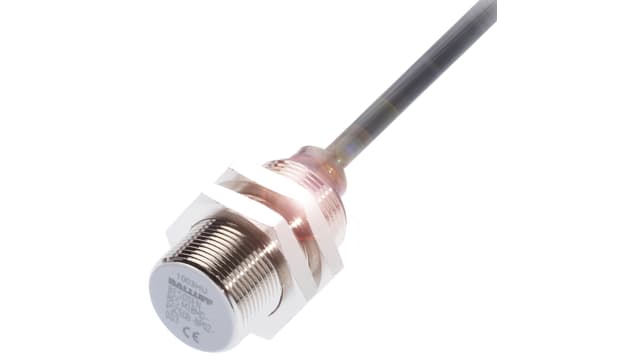

BALLUFF Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, NPN NO, 10 → 30 V dc | BES04CZ
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 16 pcs
Mfr. Part No: BES04CZ
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | BALLUFF |
| Thread Size | M18 |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 5 mm |
| Digital Switching Output Type | NPN |
| Output Function | NO |
| Connection Type | Pre-Cabled |
| Cable Length | 2m |
| Supply Voltage | 10 → 30 V dc |
| Length | 36mm |
| IP Rating | IP67 |
| Mounting Type | Flush |
| Housing Material | Brass Nickel Plated |
| Width | 18mm |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 375Hz |
| Series | BES |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 375 Hz |
| Switching Current | 130 mA |
| Shielding | Shielded |
Product Details
The Balluff Inductive sensor BES series standard sensors used for detecting objects in metal areas are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application. The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
Housing material brass, Nickel-free coated
Material jacket PVC
Material sensing surface PA
Number of conductors 3
Switching frequency 375 Hz
Short-circuit protection
Polarity reversal protected
Material jacket PVC
Material sensing surface PA
Number of conductors 3
Switching frequency 375 Hz
Short-circuit protection
Polarity reversal protected
