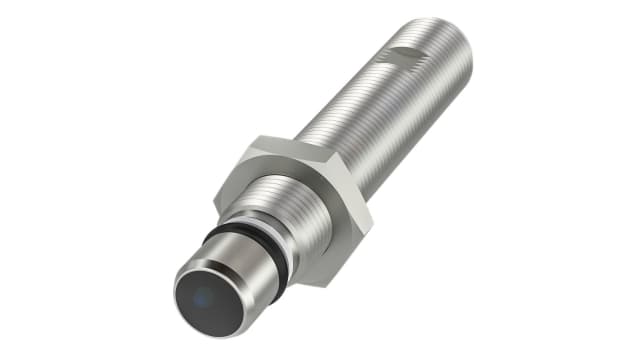

BALLUFF Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, NPN NO, 10 → 30 V dc | BES00CP
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 9 pcs
Mfr. Part No: BES00CP
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | BALLUFF |
| Thread Size | M8 |
| Sensor Technology | Inductive |
| Detection Range | 2 mm |
| Body Style | Threaded Barrel |
| Digital Switching Output Type | NPN |
| Output Function | NO |
| Connection Type | Pre-Cabled |
| Cable Length | 2m |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP67 |
| Length | 40mm |
| Mounting Type | Flush |
| Width | 8mm |
| Housing Material | Stainless Steel |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Frequency | 5kHz |
| Shielding | Shielded |
| Switching Current | 200 mA |
| Switching Frequency | 700 Hz |
| Maximum Operating Temperature | +85°C |
| Series | BES |
Product Details
The Balluff Inductive sensor BES series standard sensors used for detecting objects in metal areas are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application. The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
Housing material stainless steel
Material jacket PUR
Material sensing surface PBT
Switching frequency 700Hz
Number of conductors 3
Polarity reversal protected
Short-circuit protection
Ambient temperature -25 to 70 °C
Material jacket PUR
Material sensing surface PBT
Switching frequency 700Hz
Number of conductors 3
Polarity reversal protected
Short-circuit protection
Ambient temperature -25 to 70 °C
