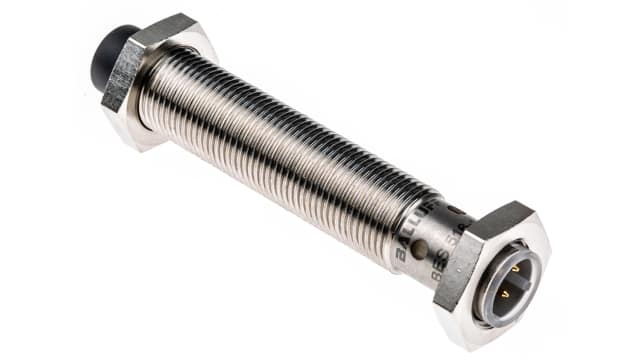

BALLUFF Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 10 → 30 V dc | BES03YP
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 9 pcs
Mfr. Part No: BES03YP
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | BALLUFF |
| Thread Size | M8 |
| Sensor Technology | Inductive |
| Detection Range | 2 mm |
| Body Style | Threaded Barrel |
| Digital Switching Output Type | PNP |
| Output Function | NO |
| Connection Type | M12 |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP67 |
| Length | 65mm |
| Mounting Type | Flush |
| Width | 8mm |
| Housing Material | Brass, PTFE Coated |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25°C |
| Shielding | Shielded |
| Maximum Switching Frequency | 1kHz |
| Switching Current | 100 mA |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 1 kHz |
| Series | BES |
Product Details
The Balluff Inductive sensor BES series standard sensors used for detecting objects in metal areas are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application. The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
Housing material brass, PTFE coated
Material sensing surface LCP
Switching frequency 1000 Hz
Short-circuit protection
Polarity reversal protected
Material sensing surface LCP
Switching frequency 1000 Hz
Short-circuit protection
Polarity reversal protected
