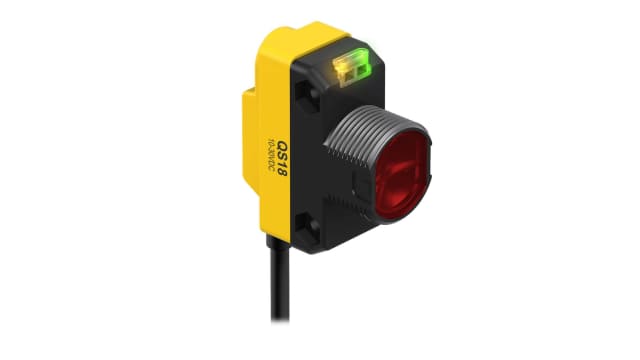

Banner Diffuse Photoelectric Sensor, Block Sensor, 380 mm Detection Range | MIAD9DQ
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 12 pcs
Mfr. Part No: MIAD9DQ
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Banner |
| Sensor Style | Block |
| Detection Type | Diffuse |
| Detection Range | 380 mm |
| Electrical Connection | M12 Connector |
| Maximum DC Voltage | 15V |
| Terminal Type | M12 Connector |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | <2.1 mA |
| Response Time | 5 ms |
| Maximum Operating Temperature | +70°C |
| Housing Material | PBT |
| Minimum Operating Temperature | -40°C |
Product Details
Photoelectric Sensor
Diffuse mode sensor
Order number: 3034625
Order number: 3034625
Features and Benefits:
M12 x 1 connector, 4-pin
Degree of protection IP67
Sensitivity adjustable via potentiometer
Alignment indicator
Operating voltage: 5…15 VDC (NAMUR)
NAMUR output in accordance with DIN 19234 (IEC/EN 60947-5-6)
Degree of protection IP67
Sensitivity adjustable via potentiometer
Alignment indicator
Operating voltage: 5…15 VDC (NAMUR)
NAMUR output in accordance with DIN 19234 (IEC/EN 60947-5-6)
Approvals and Certification:
ATEX II 1G, ATEX II 2G, ATEX II 3G
