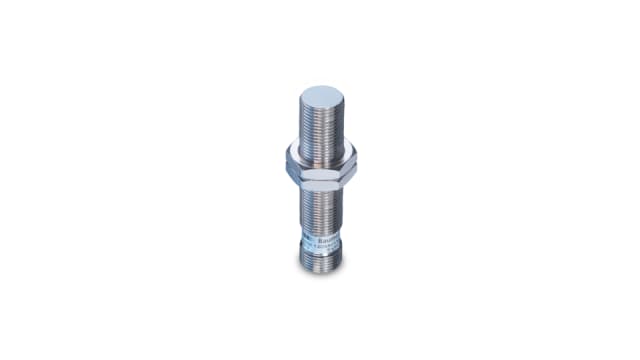

Baumer Barrel Nickel Plated Brass 10 Hz Position Sensor Precision Position Switch, 50 mA, IP67 25 mm 8 mm | MY COM H75/80
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 10 pcs
Mfr. Part No: MY COM H75/80
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Baumer |
| Body Style | Barrel |
| Product Type | Position Sensor Precision Position Switch |
| Switching Frequency | 10Hz |
| Terminal Type | Wire |
| Switching Current | 50 mA |
| Housing Material | Nickel Plated Brass |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 75°C |
| IP Rating | IP67 |
| Series | MY COM E |
| Standards/Approvals | RoHS |
| Length | 25mm |
| Width | 8 mm |
Product Details
My-Com Precision Position Switches
High precision measuring and control switches which can be used in a mass production environment as a control gauge to measure length, diameter or centralisation. They may also be used to detect small expansions due to temperature and pressure changes.
Nickel plated brass housing
Activating force 75g
Repeatability ±0.001mm
Hysteresis ±0.002mm
Mechanical life 106 operations
Switching frequency 10Hz
Ruby or sapphire switches
Temperature range -20 → +75°C
Note
Stock no. 446-0254 is not illustrated, this is a Plug-In termination and requires an M8 3pin lead. For a suitable lead see Stock no. 290-4437 typically. Pre-Wired types are terminated with 800mm of PVC cable.
