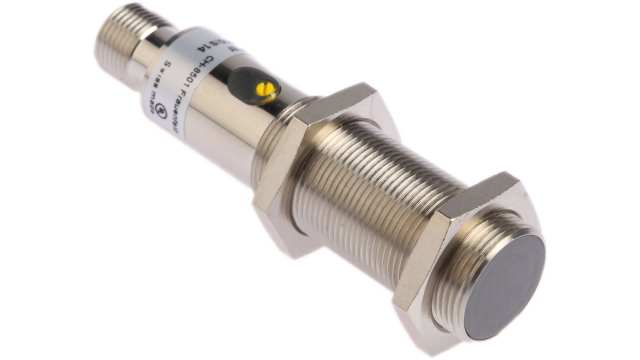

Baumer Barrel Nickel Plated Brass PNP 1.2 mm 250 Hz Precision Position Switch, 0.05 A, IP67 40 mm 8 mm | MY COM L75P/S35L
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 6 pcs
Mfr. Part No: MY COM L75P/S35L
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Baumer |
| Product Type | Precision Position Switch |
| Body Style | Barrel |
| Output Type | PNP |
| Detection Range | 1.2 mm |
| Switching Frequency | 250Hz |
| Terminal Type | Wire |
| Switching Current | 0.05 A |
| Minimum Operating Temperature | -20°C |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP67 |
| Maximum Operating Temperature | 75°C |
| LED Status Display | Yes |
| Length | 40mm |
| Width | 8 mm |
| Series | MY-COM L75P/S35L |
| Standards/Approvals | RoHS |
Product Details
The Baumer My-Com precision position switch used high precision measuring and control switch which can be used in a mass production environment as a control gauge to measure length, diameter or centralisation. This may also be used to detect small expansions due to temperature and pressure changes. It used PNP output with closure by break function (NC) by connect M8 which has 3 pin.
Operating temperature -20 to +75 °C
Protection class IP 50
