Baumer BHK Series Optical Incremental Encoder, 1000 ppr, HTL/Push Pull Signal, Hollow Type, 6mm Shaft | BHK 16.24K1000-B6-5
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 9 pcs
Mfr. Part No: BHK 16.24K1000-B6-5
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Baumer |
| Encoder Technology | Optical |
| Pulses Per Revolution | 1000 |
| Series | BHK |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | HTL/Push Pull |
| Shaft Type | Hollow |
| Shaft Diameter | 6mm |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP42 |
| Overall Width | 40mm |
| Minimum Operating Temperature | -20°C |
| Mounting Type | Through Hollow Shaft Flange |
| Maximum Operating Temperature | +85°C |
| Switching Frequency | ≤100 kHz |
| Connection Type | Cable output 1 m |
Product Details
BHK-16 series incremental coders
Miniature, hollow shaft coder with radial output via 1 metre cable.
“Push-pull” output signal, protected against short circuits.
Plastic housing with aluminium flange.
Centring shoulder.
Compact.
“Push-pull” output signal, protected against short circuits.
Plastic housing with aluminium flange.
Centring shoulder.
Compact.
Kubler
Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation
Short circuit protection
Age and temperature compensation
Related products
1 ₫
Motion Control Sensors

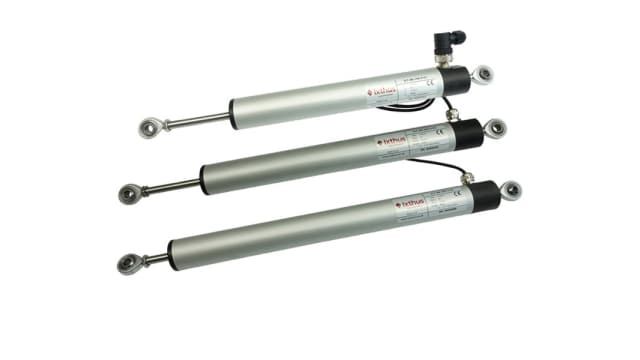

Variohm Group ILT Series Linear Measuring Position Sensor, Analogue Signal | ILT-AS-500-5-C1
