Baumer BHK Series Optical Incremental Encoder, 1024 ppr, HTL/Push Pull Signal, Hollow Type, 12mm Shaft | BHK 16.24K1024-I2-5
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 6 pcs
Mfr. Part No: BHK 16.24K1024-I2-5
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Baumer |
| Encoder Technology | Optical |
| Pulses Per Revolution | 1024 |
| Series | BHK |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | HTL/Push Pull |
| Shaft Type | Hollow |
| Supply Voltage | 10 → 30 V dc |
| Shaft Diameter | 12mm |
| IP Rating | IP42 |
| Overall Width | 40mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Mounting Type | Blind Hollow Shaft Flange |
| Switching Frequency | ≤106 kHz |
| Connection Type | Cable output 1 m |
Product Details
BHK, Miniature Hollow Shaft
Large 12mm bore available
Spring clamp attached to 12mm version for easy mounting
Spring clamp attached to 12mm version for easy mounting
Baumer
Incremental rotary encoders.
Related products
Motion Control Sensors

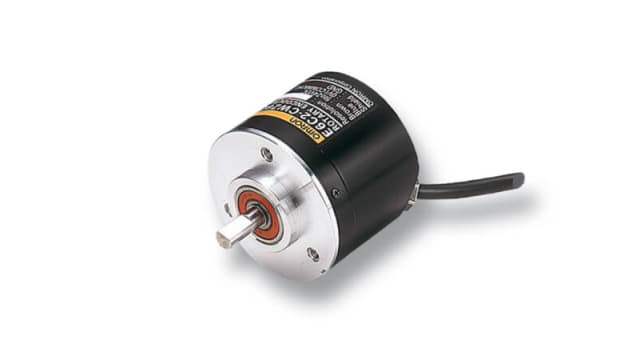

Omron Incremental Incremental Encoder, 100 ppr, Radial, Thrust Type | E6C3-CWZ5GH 100P/R 2M
1 ₫
Motion Control Sensors

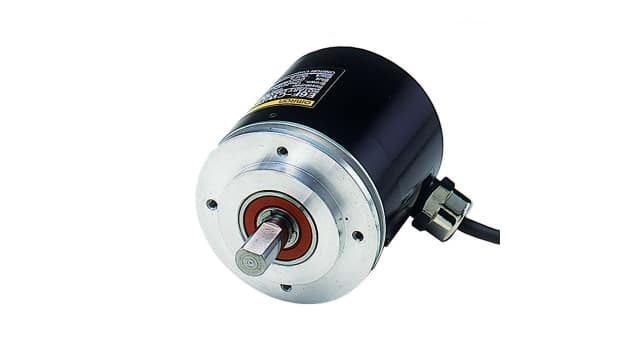

Omron Encoder, 1000 ppr, Radial, Thrust Type | E6F-CWZ5G 1000P/R 2M
