Specifications
| Attribute | Value |
|---|---|
| Brand | Baumer |
| Thread Size | M30 |
| Sensor Technology | Ultrasonic |
| Body Style | Threaded Barrel |
| Detection Range | 1 m |
| Analogue Switching Output Type | 4-20 mA |
| Connection Type | M12 |
| Supply Voltage | 15 → 30 V dc |
| IP Rating | IP67 |
| Length | 81mm |
| Width | 30mm |
| Housing Material | Brass Nickel Plated |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Short Circuit Overload Protection | Yes |
| Switching Current | 20 mA |
| Reverse Polarity Protection | Yes |

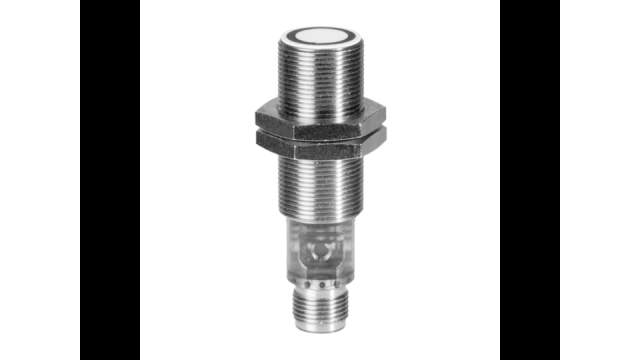

Product Details
M30 Thread UNAM 30I Analogue output
Output 4 to 20//20 to 4mA Output slope can be inverted
Teach-in
M12 plug-in connector
Dimensions: M30 x 70mm (excl conn)
LED indication
Short circuit and reverse polarity protection
IP67 ingress protection
