binder Circular Connector, 12 Contacts, Cable, Miniature Connector, Socket, Female, IP67, 720 Series | 99-9134-02-12

Name: binder Circular Connector, 12 Contacts, Cable, Miniature Connector, Socket, Female, IP67, 720 Series | 99-9134-02-12
SKU: 239-864
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 14 pcs

Mfr. Part No: 99-9134-02-12

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 239-864 Categories: binder, Industrial Circular Connectors

Description

Specifications

Attribute	Value
Brand	binder
Product Type	Circular Connector
Number of Contacts	12
Mount Type	Cable
Connector Size	Miniature
Current	2A
Plug/Socket	Socket
Contact Gender	Female
IP Rating	IP67
Series	720
Orientation	Straight
Voltage	60.0 V
Termination Type	Solder
Minimum Operating Temperature	-40°C
Mating Type	Bayonet
Shell Size	16 mm
Maximum Operating Temperature	85°C
Housing Material	Polyamide
Standards/Approvals	No
Contact Plating	Gold
Contact Material	Bronze

Product Details

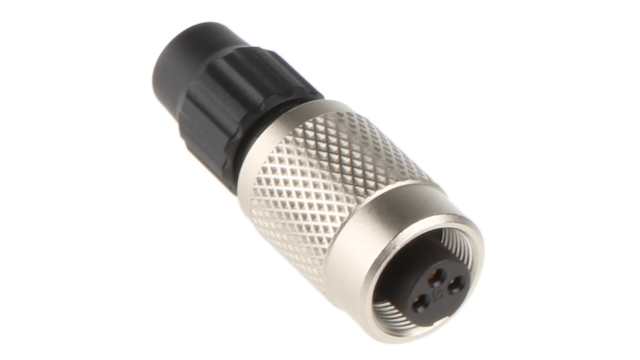

Cable Socket

Snap-in female cable connectors IP 67, series 720

Binder 720 – Plastic

Mid-size Connectors for Industrial and Medical Applications. The Series 720 snap-in connector is a larger version of the Series 620 sub-miniature connector. It offers high performance, with gold-plated contacts, at a very attractive price. Custom overmolded Series 720 assemblies.
