binder Circular Connector, 5 Contacts, Cable, M12 Connector, Socket, Male, IP67, 713 Series | 99-0437-12-05

Name: binder Circular Connector, 5 Contacts, Cable, M12 Connector, Socket, Male, IP67, 713 Series | 99-0437-12-05
SKU: 9637-607
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 9 pcs

Mfr. Part No: 99-0437-12-05

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 9637-607 Categories: binder, Industrial Circular Connectors

Description

Specifications

Attribute	Value
Brand	binder
Number of Contacts	5
Product Type	Circular Connector
Mount Type	Cable
Current	4A
Connector Size	M12
Plug/Socket	Socket
Contact Gender	Male
IP Rating	IP67
Series	713
Orientation	Straight
Voltage	125.0 V
Coding	A
Shell Size	20.2 mm
Termination Type	Screw
Minimum Operating Temperature	-40°C
Housing Material	Metal
Maximum Operating Temperature	85°C
Standards/Approvals	No
Contact Plating	Bronze
Contact Material	Brass

Product Details

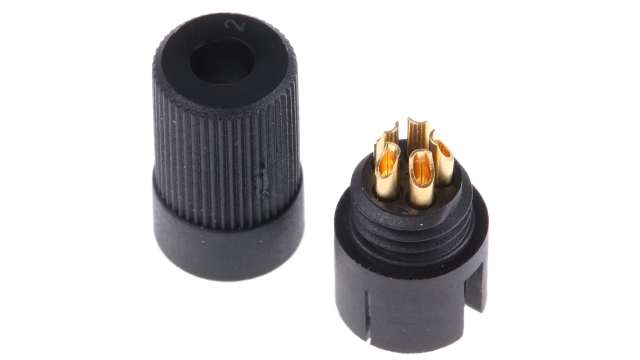

M12 male cable connector, series 713

M12 connectors are available in straight or angled versions, with an anchored cable gland to prevent strain on the cable. These light weight connectors are also available in male or female versions with screw and/or clamp termination, this allows for strong and robust connection.

Features and Benefits:

The contact surfaces are 8-poles Brass, gold plated, which inhibits oxidation and tarnishing extending the life expectancy. Termination is via a screw clamp ensuring a strong and stable connection, whilst the connector locking system is bolted. Cable out let is for cables ranging from 6.0mm to 8.0mm and is IP67 when mated.

For the housing material of this connector is PA, Polyamide. Polyamide is used in some cable connectors due to its high strength and resilience, it is also abrasion resistant resulting in durability. This makes it the ideal material for connector casing.
