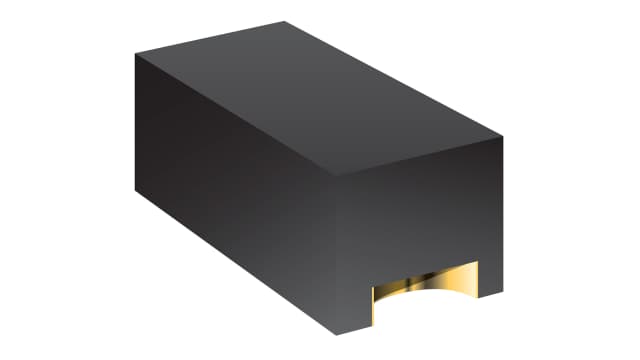

Bourns 1-Element Bi-Directional High Current TVS Diode, 2-Pin DFN2 | PTVS1-058C-H
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 4 pcs
Mfr. Part No: PTVS1-058C-H
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Bourns |
| Diode Configuration | Bi-Directional |
| Product Type | High Current TVS Diode |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 64V |
| Mount Type | Surface |
| Package Type | DFN2 |
| Maximum Reverse Stand-off Voltage Vwm | 58V |
| Pin Count | 2 |
| Clamping Voltage VC | 67V |
| Maximum Peak Pulse Current Ippm | 1kA |
| Minimum Operating Temperature | -55°C |
| ESD Protection | Yes |
| Maximum Operating Temperature | 125°C |
| Number of Elements per Chip | 1 |
| Width | 6 mm |
| Length | 8mm |
| Standards/Approvals | RoHS |
| Series | PTVS1-058C-H |
| Automotive Standard | No |
Product Details
The Bourns PTVS1-xxxC-H family of high current bidirectional TVS diodes is designed to protect DC or PoE powered systems such as small cell or surveillance cameras that can be exposed to high surge events such as induced lightning or inductive power switching. These devices offer bidirectional port protection and are available with standoff voltage ratings of 22 to 86 V. The devices are RoHS compliant and halogen free and are designed to meet IEC 61000-4-5 8/20 μs current surge requirements.
1 kA, 8/20 μs surge capability
Repetitive standoff voltage 22 to 86 volts
Bidirectional TVS
Low clamping voltage under surge
Excellent performance over temperature
Surface mount DFN package
RoHS compliant and halogen free
