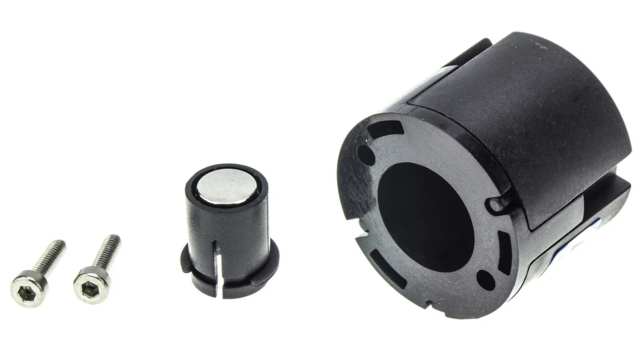

Broadcom 5 V dc 500 ppr Pulse Optical Encoder with a 0.25 in Hollow Shaft, Surface, Cable | HEDS-5500#A06
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 10 pcs
Mfr. Part No: HEDS-5500#A06
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Broadcom |
| Product Type | Optical Encoder |
| Pulses Per Revolution | 500ppr |
| Encoder Signal | 2 Channel Quadrature |
| Supply Voltage | 5 V dc |
| Shaft Diameter | 0.25in |
| Automotive Standard | No |
| Mount Type | Surface |
| Shaft Style | Hollow |
| Termination Style | Cable |
| Maximum Operating Speed | 30000rpm |
| Encoder Type | Incremental |
| Standards/Approvals | RoHS 6 |
| Series | HEDS |
| Current Rating | 5 mA |
Product Details
Miniature Hollow Shaft Encoders
500ppr encoders designed for fitting directly onto motor shafts etc. Both versions have 2 digital output waveforms which are 90° out of phase to provide resolution and direction information. However, the 3 channel version also provides a pulse once per revolution output (index) for added versatility
5V dc operation with TTL compatible outputs
-40 to +100°C operating temperature
Connection via plug-in cable assemblies, available separately
