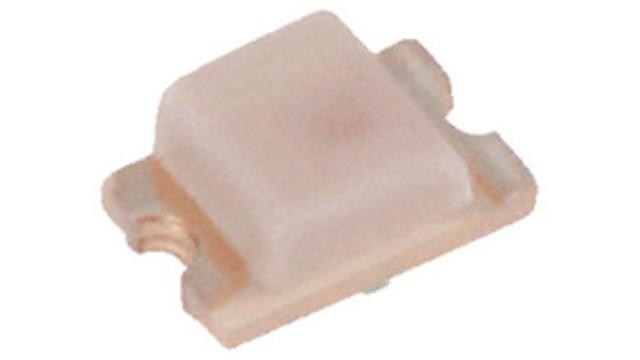

Broadcom ASSR-1510 Series Solid State Relay, 1 A Load, Surface Mount, 60 V Load, 1.7 V Control | ASSR-1510-503E
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 3 pcs
Mfr. Part No: ASSR-1510-503E
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Broadcom |
| Maximum Load Current | 1 A |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 60 V |
| Minimum Load Voltage | -60 V |
| Minimum Control Voltage | 1.1 V |
| Maximum Control Voltage | 1.7 V |
| Switching Type | AC |
| Control Voltage Range | 1.1 → 1.7 V |
| Number of Poles | 1 |
| Terminal Type | PCB Pin |
| Contact Configuration | SPDT |
| Output Device | MOSFET |
| Relay Type | Solid State Relay |
| Package Style | SO |
| Series | ASSR-1510 |
| Load Voltage Range | -60 → +60V |
| Maximum Turn On Time | 2ms |
| Dimensions | 4.4 x 4.3 x 2mm |
| Capacitance | 0.4pF |
| Height | 2mm |
| Depth | 4.3mm |
| Minimum Operating Temperature | -40°C |
| Special Features | CMOS Compatibility, CSA Component Acceptance, Single and Dual Channel Normally-off Single-Pole-Single-Throw (SPST) Relay |
| Operating Temperature Range | -40 → +85°C |
| Length | 4.4mm |
| Off State Leakage Current | 100nA |
| Maximum Operating Temperature | +85°C |
Product Details
The ASSR-15XX Series consist of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs. The relay turns on (contact closes) with a minimum input current of 3mA through the input LED. The relay turns off (contact opens) with an input voltage of 0.8V or less.
Compact Solid-State Bi-directional Signal Switch
Single and Dual Channel Normally-off Single-Pole-Single-Throw (SPST) Relay
60V Output Withstand Voltage
1.0A or 2.0A Current Rating (See Schematic for ASSR-1511 Connections A & B)
Low Input Current: CMOS Compatibility
Low On-Resistance: 0.175Ω Typical for DC-only, 0.35Ω Typical for AC/DC
Very High Output Off-state Impedance: 10 Teraohms Typical
High Speed Switching: 0.1ms (Ton), 0.02ms (Toff) Typical
High Transient Immunity: Greater than 1kV/μs
Single and Dual Channel Normally-off Single-Pole-Single-Throw (SPST) Relay
60V Output Withstand Voltage
1.0A or 2.0A Current Rating (See Schematic for ASSR-1511 Connections A & B)
Low Input Current: CMOS Compatibility
Low On-Resistance: 0.175Ω Typical for DC-only, 0.35Ω Typical for AC/DC
Very High Output Off-state Impedance: 10 Teraohms Typical
High Speed Switching: 0.1ms (Ton), 0.02ms (Toff) Typical
High Transient Immunity: Greater than 1kV/μs
