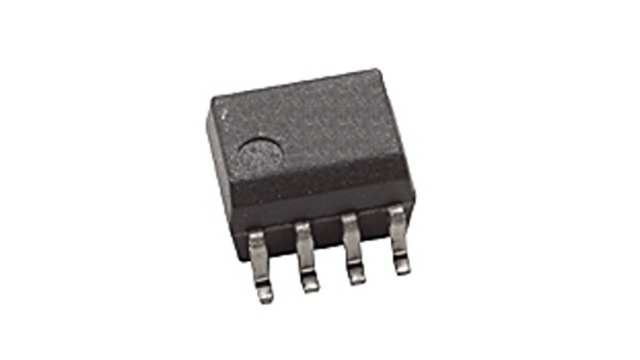

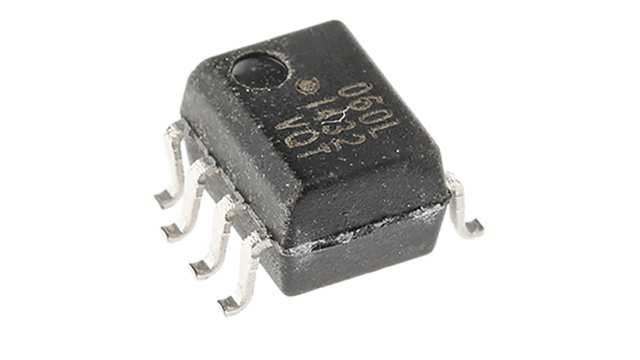

Broadcom Solid State Relay, 0.2 A Load, PCB Mount, 600 V Load, 1.7 V Control | ASSR-5211-301E
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 9 pcs
Mfr. Part No: ASSR-5211-301E
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Broadcom |
| Maximum Load Current | 0.2 A |
| Mounting Type | PCB Mount |
| Maximum Load Voltage | 600 V |
| Minimum Load Voltage | 600 V |
| Maximum Control Voltage | 1.7 V |
| Control Voltage Range | 1.1 → 1.7 V |
| Minimum Load Current | 0.2 A |
| Contact Configuration | SPST |
| Output Device | MOSFET |
| Dimensions | 9.65 x 6.35 x 4.19mm |
| Height | 4.2mm |
| Depth | 6.4mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Length | 9.7mm |
Product Details
Solid State Relay (Photo MOSFET), ASSR Series, Avago Technologies
The Avago Technologies’ Photo MOSFET Solid State Relay family consists of an infrared light-emitting diode (LED) and the detector which consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs.
Optocouplers, Avago Technologies
