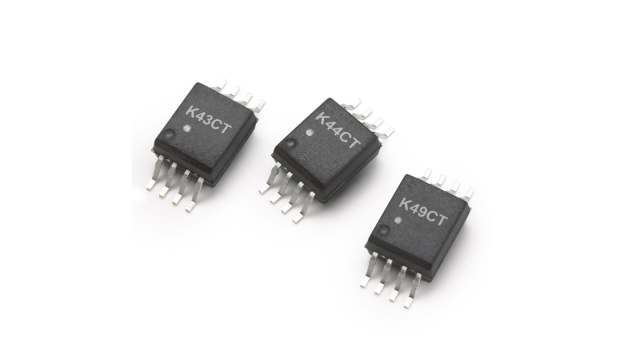

Broadcom Surface Hall Effect Sensor 4.5 V 5.5 V, SO-8, 8-Pin | ACHS-7121-000E

Name: Broadcom Surface Hall Effect Sensor 4.5 V 5.5 V, SO-8, 8-Pin | ACHS-7121-000E
SKU: 6969-162
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 12 pcs

Mfr. Part No: ACHS-7121-000E

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 6969-162 Categories: Broadcom, Motion Sensor ICs

Description

Specifications

Attribute	Value
Brand	Broadcom
Product Type	Hall Effect Sensor
Sensor Type	Hall Effect
Technology	Hall Effect
Mount Type	Surface
Magnetic Type	Hall
Maximum Frequency Response	80kHz
Minimum Supply Voltage	4.5V
Package Type	SO-8
Maximum Supply Voltage	5.5V
Minimum Operating Temperature	-40°C
Sensitivity	185mV/A
Pin Count	8
Maximum Operating Temperature	110°C
Width	3.94 mm
Standards/Approvals	UL, CSA
Length	8mm
Series	ACHS-71
Height	1.91mm
Supply Current	13mA
Automotive Standard	No

Product Details

The Broadcom ACHS series is s is a fully integrated hall effect-based isolated linear current sensor device family designed for AC or DC current sensing in industrial, commercial, and communications systems. Each of the ACHS series consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die.

Wide operating temperature: –40ºC to 110ºC

Primary conductor resistance: 0.7 mΩ typ.

Sensing current range: ±10A, ±20A, and ±30A

Output sensitivity: 66 to 185 mV/A

Output voltage proportional to AC or DC currents

Ratio metric output from supply voltage

Single supply operation: 5.0V

Low-noise analogue signal path
