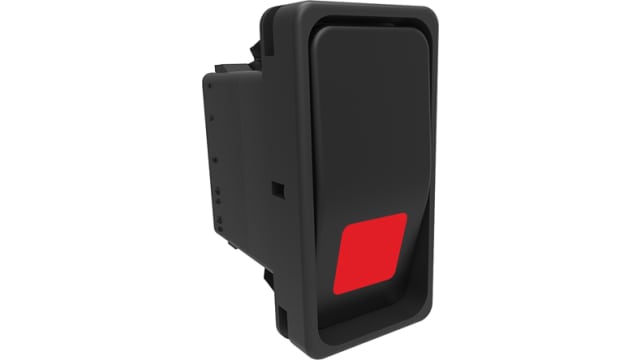

Carling Technologies DPST, On-Off-On On-Off-On Rocker Switch Panel | VL52S00C-00000-000

Name: Carling Technologies DPST, On-Off-On On-Off-On Rocker Switch Panel | VL52S00C-00000-000
SKU: 2072-319
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 4 pcs

Mfr. Part No: VL52S00C-00000-000

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 2072-319 Categories: Carling Technologies, Rocker Switches

Description

Specifications

Attribute	Value
Brand	Carling Technologies
Contact Configuration	DPST
Product Type	Rocker Switch
Switch Operation	On-Off-On
Housing Material	Polyester
Panel Cutout Size	36.83 x 21.08 mm
Switch Contact Current	10 A
Illuminated	No
Actuator Colour	Black
Series	V
Terminal Type	Quick Connect
Mount Type	Panel
IP Rating	IP68, IP66
Contact DC Voltage	28V
Contact AC Voltage	250V
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	85°C
Switch Configuration	On-Off-On
Standards/Approvals	VDE, UL, RoHS, CSA
Mechanical Life	150000Cycles

Product Details

V Series Sealed Contura Rocker Switches

From Carling Technologies, the Contura V series of sealed rocker switches designed for panel mounting. The IP65/68 waterproof switches are robustly constructed from toughened engineering materials providing complete protection from dust, extended spray and submersion. Contura V switches are recognized to UL1500 – Ignition Protection for Marine Products. These switches are shock, vibration, thermos-shock, moisture and salt spray resistant.

Illuminated and Non-illuminated

The Contura V series of rocker switches are available in both standard non-illuminated or illuminated versions with incandescent, neon and a wide variety of LEDs including superbrite,

flashing and bi-colour.

Removable actuators

With an extensive range of removable rocker actuators in various legend designs and colours, the Contura V rocker switches provide countless options for panel designs. A handy actuator tool is available separately for quick removal and replacement of rocker faces. ( part number 665-562)

Switch operation and contact configuration

With a choice of momentary or latching switching in single pole double pole and triple pole contact configurations, the V series of rockers offer an array of circuit solutions.

Panel mounting

Fitting is easy, once the recommended panel cut-out is made ( 21.8 x 36.8) the panel mount rocker switches simple snap in to the aperture. The multi-step mounting wings provide a secure fit for panel thicknesses of 0.8 mm to 6.35 mm.

Features and Benefits

• IP66/68 ingress protection

• Dual seal protection

• Vibration, shock, thermos-shock, moisture and salt spray resistant

• Interchangeable actuators with a choice of multiple symbols

• Connection via 6.3 mm quick connect blade terminals

• SPST, SPDT, DPST, DPDT and 3PDT contact configurations

• On-Off, On-Off-On, Off-On-On, and On-On-On switching operations

Typical applications for sealed rocker switches

Rocker switches are one of the most frequently used types of electrical switch in the market today. The Contura V-series of waterproof switches is designed specifically for harsh environments. Some of the most common are:

• Marine and shipping

• Highway and motorway vehicles and machinery

• Mining machinery

FAQ

• Are the rocker switches easy to connect?

Yes, the V series of rocker switches are fitted with industry standard 6.35 x 0.8 mm quick connect male tab terminals. Simply select the appropriate red, yellow or blue female push on receptacles, according to the wire size required.
