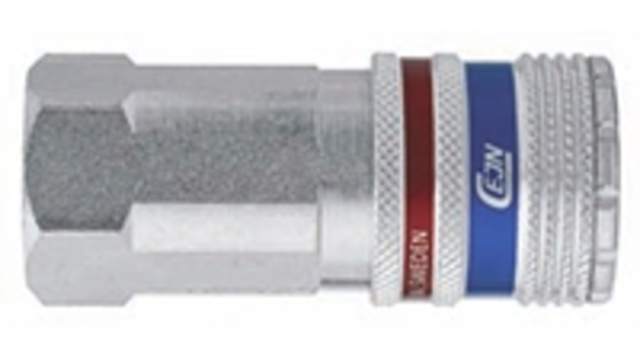

CEJN Steel Hydraulic Quick Connect Coupling Female 1/2 in | C105256235

Name: CEJN Steel Hydraulic Quick Connect Coupling Female 1/2 in | C105256235
SKU: 3471-981
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 5 pcs

Mfr. Part No: C105256235

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 3471-981 Categories: CEJN, Hydraulic Quick Connect Couplings

Description

Specifications

Attribute	Value
Brand	CEJN
Product Type	Hydraulic Quick Connect Coupling
Thread Size	1/2 in
Material	Steel
Series	525
Lock Type	Screw Lock
Sub Type	Nipple
Finish	Zinc Plated
Thread Standard	G
Minimum Operating Temperature	-20°C
Thread Gender	Female
Standards/Approvals	RoHS
Maximum Operating Pressure	300 bar
Maximum Operating Temperature	205°C

Product Details

Series 525 is a family of quick couplings for hydraulic systems. A manually-operated locking ring provides extra security against involuntary disconnection. Series 525 couplings and nipples have a pressure eliminator as an extra feature for evacuating residual pressure during connection. Both components are made of steel with Zinc-Nickel surface for maximum durability in tough applications and environments. The Series is also available in four other sizes: DN 6.3 (1/4″), DN 10 (3/8″), DN 20 (3/4″) and DN 25 (1″). For a stainless steel version see Series 526. Available are also a version with viton seals and a free flow version (without valve package).

Manual locking ring for extra security

High durability

Optional pressure eliminator
