Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 20 bar | DPI705E-1-13G-P1-H0-U0-OP0
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 11 pcs
Mfr. Part No: DPI705E-1-13G-P1-H0-U0-OP0
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Druck |
| Accuracy | ±0.1 % |
| Product Type | Manometer |
| Number of Pressure Ports | 1 |
| Maximum Pressure Measurement | 20bar |
| Minimum Pressure Measurement | 0bar |
| Pressure Port Type | Gauge |
| Leak Testing | Yes |
| Minimum/Maximum Recordings | Yes |
| Data Logging | No |
| Model Number | DPI705E |
| Intrinsically Safe | No |
| IP Rating | IP54 |
| Battery Type | AA |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | 50°C |
| Display Type | LCD Backlight |
| Standards/Approvals | RCM, CE |
| Height | 43mm |
| Width | 95 mm |
| Length | 200mm |
| Hazardous Area Certification | IECEx, ATEX |
| Weight | 563g |
| Calibrated | UKAS |
Product Details

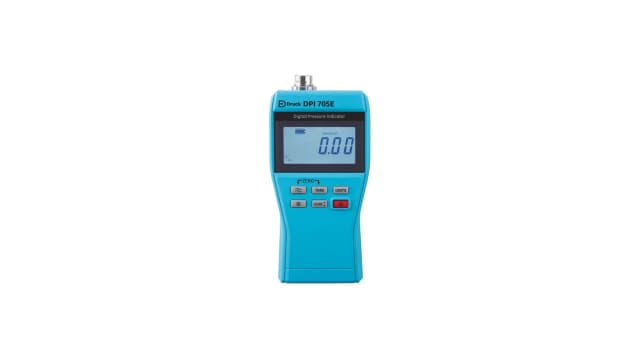

Druck Manometer, 20 Bar Maximum Pressure Measurement, IP54 – DPI705E-1-13G-P1-H0-U0-OP0
This handheld pressure indicator known as the Druck Manometer is a versatile device that combines rugged design with accurate measurements for routine maintenance and system troubleshooting. With features like a backlit high-contrast display and leak testing capabilities, this manometer is designed for single-handed operation and offers essential features needed in various industries.
Features & Benefits
• Offers 41 pressure ranges from ±25 mBar to 1,400 Bar, ensuring precise measurements for versatility
• Provides total 1 year uncertainty down to 0.05% full scale (FS) over a temperature range of -10°C to +50°C, ensuring reliable performance
• Comes with leak testing, tare, maximum/minimum, and filter functions for added convenience during use
• Optional remote plug and play pressure and resistance temperature detector (RTD-PROBE) sensors, allowing for additional customisation and compatibility
• Long battery life and backlit LCD display make it a reliable and user-friendly device for extended use
Applications
• Ideal for pressure measurements in industrial automation, electrical maintenance, and mechanical systems troubleshooting
Can it be used in hazardous areas?
Yes, there is a Hazardous Area version available for such environments.
What kind of pressure ranges does it offer?
The manometer offers a wide range of pressure options from ±25 mBar to 1,400 Bar for diverse applications.
Is the backlit LCD display easy to read in different lighting conditions?
Yes, the backlit display ensures visibility in various environments.
How long does the battery last?
The device boasts a long battery life, allowing for continuous use without frequent replacements.
Is the manometer suitable for single-handed operation?
Yes, the design of the manometer allows for easy single-handed operation.
