EAO Modular Switch Actuator for Use with Series 31 | 31-151.0252

Need to add an illuminated push button to a panel? Use this actuator from EAO. It’s designed for use with lenses and lamps from the 31 series for ease of assembly, allowing you to create customised switches for your machinery. It has a small cut-out diameter of only 16mm, so it will take up minimal space on your panel. Thanks to its NO/NC configuration, this actuator is suitable for use in on/off or start/stop functions.

• Gold-plated silver contacts are conductive and resistant to corrosion for reliable switching

• Solder terminals for simple and secure wiring

• Plastic switch and actuator housing material is self-extinguishing for safety in the event of a fire

• IP40 rating for protection against tools and wires larger than 1mm in size

• Industrial machinery

• Automation and process control

• Panel building

This push button has a snap-action mechanism for quick switching. It’s a momentary switch, so it’s only activated as long as it’s being pressed. This makes it suitable for closely controlling machine functions.

The EAO 31 series of illuminated push button switches are suitable for use in many Human Machine Interface (HMI) panel mounting applications including Process Control, Panel Building, Machinery and Instrumentation. The illuminated push button switches are available in a choice of round (18mm diameter), square (18x18mm) or rectangular (18x24mm) bezels with snap action or low level switching elements with momentary or maintained switching actions.

The snap action switching element is a self-cleaning, double-break, snap action system with solder terminals, while the low level switching element is designed for switching low power loads in electronic circuits ranging from 10μA at 100μV up to 100mA at 42Vac/dc, termination is via universal terminals that allow either direct soldering or PCB mounting.

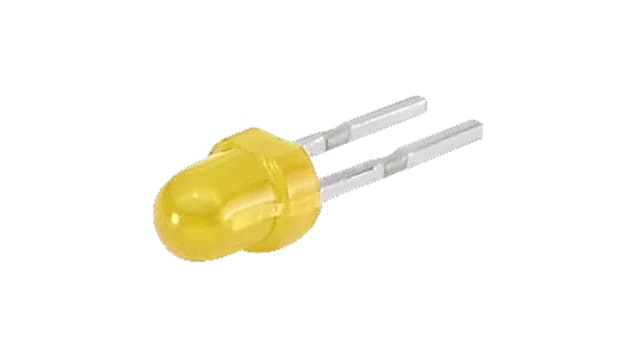

Illumination for the EAO 31 series of push button switches is via a T1 ¾ midget groove filament lamp or single chip LED with a voltage of between 6 and 48V. For supply voltages above 48V, it is necessary to use an external series resistor.

All EAO 31 series of illuminated push button switches require a 16mm panel cut out and are suitable for panels with a thickness of between 1.5 and 6mm. They have a long life, short rebound time and a stable contact resistance.

Various configurations available including low level or snap action elements, momentary or maintained switching actions and normally closed or normally open contacts

Raised button profile

Self-extinguishing switch and actuator housing material

Class II compliant

Electric strength 2500Vac 50Hz for 1 minute between all terminals and earth, as per IEC 60512-2-11

To make a complete illuminated switch you will need the switch, a lens and a filament lamp or LED.
For the EAO 31 series of indicators see stock number 248-5368 typically.
For the EAO 31 series of lenses see stock numbers 749-2611 or 248-5425 or 248-5374 typically.
For the EAO 31 series tool kit see stock number 248-5481.
For a suitable filament lamp see stock number 655-9211 typically.
For a suitable white single chip LED see stock number 225-997 typically.

EN 61058
