ERNI 104 9 Way Right Angle 1.27 mm Pitch Cable D-Sub Connector Male | 104 577
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 15 pcs
Mfr. Part No: 104 577
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | ERNI |
| Product Type | D-Sub Connector |
| Number of Contacts | 9 |
| Current | 3.3A |
| Orientation | Right Angle |
| Mount Type | Cable |
| Connector Gender | Male |
| Housing Material | Thermoplastic |
| Voltage | 690 V |
| Minimum Operating Temperature | -20°C |
| Termination Type | Screw |
| Contact Gender | Male |
| Maximum Operating Temperature | 70°C |
| Standards/Approvals | No |
| Series | 104 |
| Pitch | 1.27mm |
Product Details
Erbic Reversed design
The Erbic Reversed plug connector is specially made for IPCs and interface cards with a plug face that rotates 180°. The plug connector is available in Profibus, CAN Bus and Bitbus-compatible designs.
Erbic® bus systems D Type Connectors
Interface plug connectors from the Erbic® range have compact external dimensions and a horizontal cable connection.
The ERbic® MAX range is a slimline solution with metal housing and an axial cable exit, ideal for tough conditions with high EMC requirements.
An integrated switch, accessible from the outside, lets you switch from node to terminating modes with active termination (terminating resistance).
The switch is positioned opposite the housing to prevent accidental activation.
Models with IDC clamps are available for quick and easy connection to the swivel cord.
Approvals
UL E 87403
Related products
1 ₫
D Sub Connector Accessories

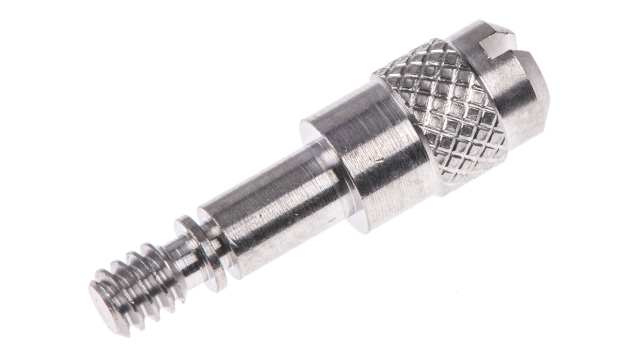

TE Connectivity, AMPLIMITE Series Knurled Screw For Use With D-Sub | 1437012-5
