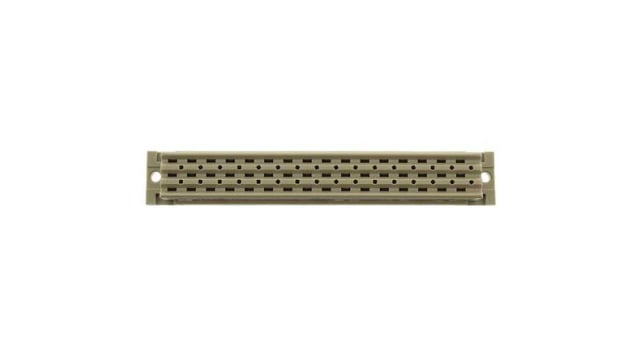

ERNI DIN 41612 128 Way 2.54 mm Pitch, Type Through Hole, Type CD, Type Solder Class Class C2, 4 Row Female, Straight DIN | 254977 / 254977-E

Name: ERNI DIN 41612 128 Way 2.54 mm Pitch, Type Through Hole, Type CD, Type Solder Class Class C2, 4 Row Female, Straight DIN | 254977 / 254977-E
SKU: 978-125
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 6 pcs

Mfr. Part No: 254977 / 254977-E

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 978-125 Categories: DIN 41612 Connectors, ERNI

Description

Specifications

Attribute	Value
Brand	ERNI
Number of Contacts	128
Product Type	DIN 41612 Connector
Current	2A
Number of Rows	4
Orientation	Straight
Connector Gender	Female
Row Loading	A/B/C/D
Termination Type	Solder
Sub Type	CD
Pitch	2.54mm
Contact Plating	Gold
Mount Type	Through Hole
Class	Class C2
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	125°C
Contact Gender	Female
Contact Material	Copper Alloy
Standards/Approvals	No
Series	DIN 41612
Maximum Contact Resistance	20mΩ
Housing Material	Polybutylene Terephthalate

Product Details

Type E/TE/CD/RD

This range of DIN41612 / IEC 60603-2 Backplane / Board to Board / Wire to Board Connectors covers different connection variations. The design of these Backplane connectors is in accordance with DIN 41612/ IEC 60603-2 providing excellent quality and reliability. Applications for these DIN41612 / IEC 60603-2 connectors include:

Connection between plug-in cards and backplane wiring

Connection between two PCB’s arranged one above the other

As a peripheral connector for external interfaces of the wiring plane

Type E160 160 contacts in 5 rows

Type TE160 160 (inverted model) 160 contacts in 5 rows

Type CD128 128 contacts in 4 rows

Type RD128 (inverted model) 128 contacts in 4 rows
