Eurotherm 3 Graphical Graphic Recorder Millivolt, Current, Voltage, Resistance, Temperature | NANODAC/VL/X/X/LRD/B
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 15 pcs
Mfr. Part No: NANODAC/VL/X/X/LRD/B
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Eurotherm |
| Chart Type | Graphical |
| Product Type | Graphic Recorder |
| Measurement Parameters | Millivolt, Current, Voltage, Resistance, Temperature |
| Number of Channels | 3 |
| Width | 90 mm |
| Weight | 0.44kg |
| Standards/Approvals | CE, BS EN 61326, EU, UL |
| Height | 96mm |
| Resolution | 0.05 °C |
| Length | 96mm |
Product Details

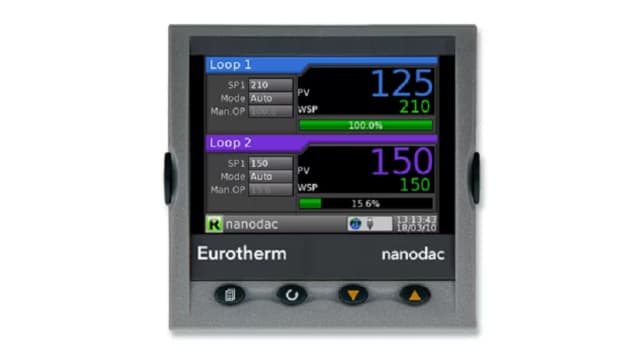

The Eurotherm nanodac recorder is a graphical video graphic chart recorder used to measure the current, millivolt, voltage, resistance and temperature. It has 24V ac (+10% – 15%) at 48-62Hz, or 24V dc (+20% – 15%) without any controller and programmer along with 1 Logic, 1 relay and 1 analog (ISO DC) output options. It comes with 3.5in TFT display that offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application. The views include horizontal and vertical trends, bar graphs, numeric, alarm panel, alarm status and control loops.
Tamper resistant data recording methodology trusted by auditors
Four navigation push buttons (Page, Scroll, Lower and Raise)
USB removable data storage facility
High accuracy universal inputs
50 MB data storage
8Hz (125ms) sample data recording rate
3.5” colour TFT (320 pixels wide x 240 pixels high) integrated display
Multi-language support
Compact design
