Festo Compact Air Bellows EB-325-95, 1 convolution 95 mm | EB-325-95
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 9 pcs
Mfr. Part No: EB-325-95
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Festo |
| Series | EB |
| Product Type | Compact Air Bellows |
| Nominal Diameter | 340mm |
| Number of Convolutions | 1 |
| Stroke Length | 95mm |
| Connection Thread Standard | G |
| Port Size | 1/4 in G |
| Maximum Operating Pressure | 8 bar |
| Minimum Installation Height | 150mm |
| Port Gender | Female |
| Minimum Operating Temperature | -40°C |
| Material | Butadiene Rubber, Galvanised Steel, Natural Rubber (Bellows) |
| Maximum Installation Height | 150mm |
| Maximum Operating Temperature | 70°C |
| Weight | 4100g |
| Standards/Approvals | RoHS |
Product Details
The Festo stroke of the bellows cylinder can be made to carry out a circular path, in which case the indicated tilt angle á must not be exceeded. During setup the minimum height must be observed, and that the maximum height must not be exceeded at any given point. It has 325 size, maintenance-free and no stick/slip effect.
Size 325
Required installation diameter 340 mm
Stroke 95 mm
Max height when extended 150 mm
Max. tipping angle 15 deg
Related products

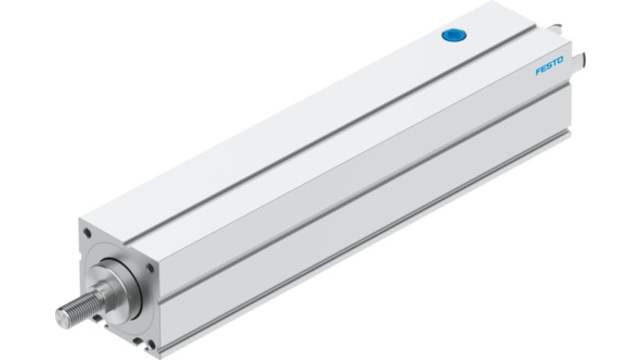

Electric Linear Actuators
