Festo QST Series, 130614 Push-in | QST-10-6
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 5 pcs
Mfr. Part No: QST-10-6
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Festo |
| Product Type | Pneumatic Fitting |
| Sub Type | Tee Tube-to-Tube Adapter |
| Connection Size A | Push-in 10 mm |
| Connection Type B | Push-in |
| Series | QST |
| Minimum Operating Temperature | -10°C |
| Material | Polybutylene Terephthalate, POM, High Alloy Stainless Steel, Polybutylene Terephthalate Reinforced, Nitrile Rubber (NBR), Polypropylene, Nickel Plated Brass |
| Maximum Operating Temperature | 80°C |
| Standards/Approvals | Germanischer Lloyd (QS,QS-B,QS-V0), UL (QS-V0), DIN 73378 (NPQM), DIN 5510-2 (PUN-V0), FDA (certain models) |
| Finish | Nickel Plated Brass, Polybutylene Terephthalate |
| Food Grade | Yes |
| Chemical Resistant | Yes |
| Maximum Operating Pressure | 14 bar |
Product Details

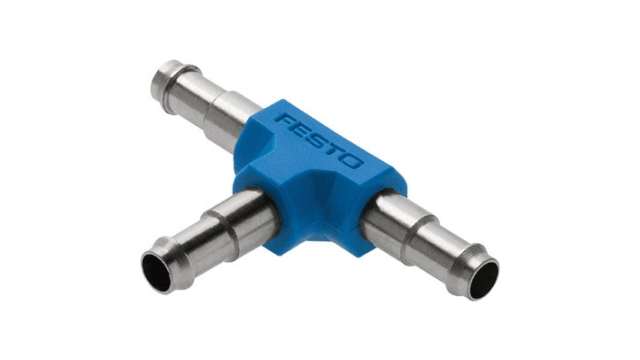

Festo QST-10-6 Push-In T-Shape Pneumatic Fitting
The QST-10-6 from Festo is a high quality pneumatic connector which offers both maximum flexibility and quick installation due to the convenient push-in T-shape fitting type.
Features and Benefits
• QS Series
• T shape fitting
• Tubing size O.D 10 mm port 1 connection
• Tubing size O.D 6 mm port 2 connection
• Push in type ensuring quick and simple installation
• Tube to tube style connection
• High performing and durable thermoplastic (PBT)
• Any mounting position
FESTO QST Push-in T Connector
The Quick Star QST range offer a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality T connectors are available in various sizes and configurations including equal, reducing and miniature size to suit your tubing diameter, they offer both a secure and reliable connection.
Features and Benefits
• Maximum flexibility for each pneumatic fitting
• Effortless, quick and simple push-in installation
• Tube to tube (hose) connection style for use in pneumatic applications
• Wide operating temperature range of -10 to +80°C
• Air pressure ranges of up to 14 bar
• Available with a variety of different diameter connector sizes
• Strong and durable thermoplastic (PBT)
