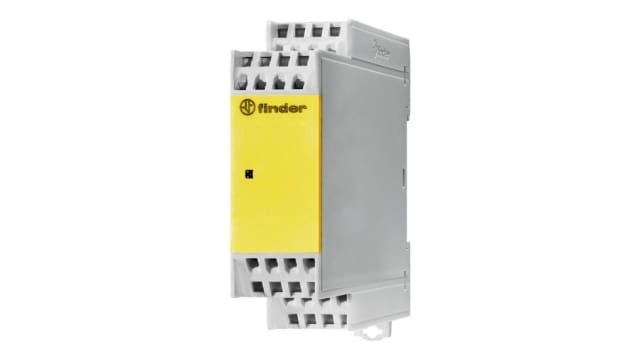

Finder Series 39 Series Solid State Interface Relay, 26.4 V dc Control, 6 A Load, DIN Rail Mount | 39.30.7.024.9024
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 7 pcs
Mfr. Part No: 39.30.7.024.9024
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Finder |
| Maximum Control Voltage | 26.4 V dc |
| Maximum Load Current | 6 A |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 24 V dc |
| Minimum Control Voltage | 19.2 V dc |
| Control Voltage Range | 24 V dc |
| Switching Type | DC |
| Contact Configuration | SPST |
| Load Voltage Range | 1.5 → 24V dc |
| Minimum Load Voltage | 1.5 V dc |
| Terminal Type | Screw |
| Length | 6.2mm |
| Height | 94.3mm |
| Minimum Load Current | 1 mA |
| Depth | 90.7mm |
| Series | Series 39 |
| Maximum Turn On Time | 0.6 ms |
| Off State Leakage Current | 0.001 mA |
| Maximum Operating Temperature | +55°C |
| Package Style | Module |
| Minimum Operating Temperature | -20°C |
| Dimensions | 85 x 6.2 x 87mm |
| Operating Temperature Range | -20 → +55°C |
| Manufacturer Part No. | 39.30.7.024.9024 |
Product Details
Finder Series 39 Series Solid State Interface Relay, 6A Load Current, 24V DC Maximum Load Voltage – 39.30.7.024.9024
This solid state interface relay is designed for efficiency within various automation applications. As part of Finder’s renowned Series 39, it offers solid state switching capabilities with a current rating of up to 6A and operates at a control voltage of 24V DC. With compact dimensions of 85mm x 6.2mm x 87mm, this high temperature relay can be conveniently mounted on a DIN rail, making it ideal for space-limited environments.
Features & Benefits
• High-speed switching at a maximum turn-on time of 0.6 ms
• SPST relay configuration allows versatile control options
• Mounting on DIN rail ensures easy installation and space-saving
• Operational temperature range from -20°C to +70°C enhances reliability
• Built-in screw terminals promote secure, reliable connections
• Low off-state leakage current of 0.001mA for energy efficiency
• SPST relay configuration allows versatile control options
• Mounting on DIN rail ensures easy installation and space-saving
• Operational temperature range from -20°C to +70°C enhances reliability
• Built-in screw terminals promote secure, reliable connections
• Low off-state leakage current of 0.001mA for energy efficiency
Applications
• Utilised in traffic light control systems
• Ideal for controlling labelling and bottling machines
• Effective for panel design in electrical distribution
• Suitable for use with hoists and cranes in manufacturing
• Employed in carousel warehouses for automated sorting
• Ideal for controlling labelling and bottling machines
• Effective for panel design in electrical distribution
• Suitable for use with hoists and cranes in manufacturing
• Employed in carousel warehouses for automated sorting
What is the benefit of using this type of relay in automation?
Using a solid state relay improves reliability and lifespan, as it has no moving parts which reduces wear and failure rates compared to electromechanical relays.
How does this device handle varying operating conditions?
It operates efficiently within a broad temperature range of -20°C to +70°C, making it suitable for diverse industrial environments.
Can this relay be integrated with other automation systems?
Yes, it features compatibility with various PLCs and control systems, allowing seamless integration into existing automation setups.
What are the advantages of solid state switching over traditional mechanical switching?
Solid state switching provides quicker response times, higher switching frequencies, and reduced energy losses due to its lack of mechanical movement.
Is it suitable for high-load applications?
Yes, the relay can handle loads up to 6A at 24V DC, making it appropriate for various high-load applications in industrial settings.
