Hager 2P Pole Isolator Switch – 25A Maximum Current, IP20 | SBN225
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 3 pcs
Mfr. Part No: SBN225
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Hager |
| Number of Poles | 2P |
| Maximum Current | 25A |
| IP Rating | IP20 |
| Voltage Rating | 230V ac |
| Electrical Phase | 1 |
| Series | SB |
| Length | 17.5mm |
| Width | 83mm |
| Depth | 72mm |
| Minimum Operating Temperature | -20°C |
| Terminal Type | Screw |
| Throw Configuration | DP |
| Maximum Operating Temperature | +50°C |
Product Details

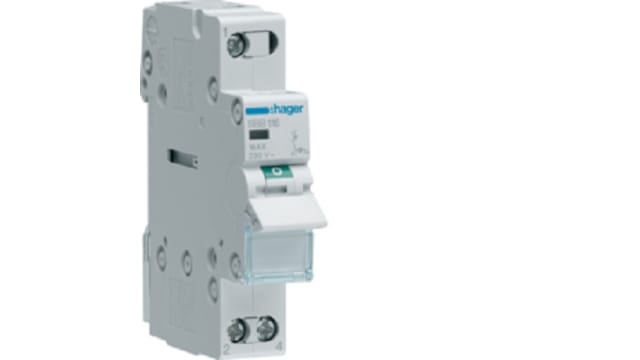

SBN Switch Disconnectors
The SBN series is a modular switch disconnector for use in all types of circuits. It complies with BS EN 60947-3 all ratings.
Features and Benefits
• Certified according to EN 60669-1 (16 A to 63 A) and IEC 60947-3
• Mechanical status indicator
• Auxiliary contact for signalling at distance
• Rated operational voltage 230 V or 400 V
• Rated frequency 50/60 Hz
• 1 P, 2 P, 3P and 4 P versions available
• DIN Rail mount
• Screw connection
• IP20 protection
• Operating temperature -25 °C to +50 °C
• Mechanical status indicator
• Auxiliary contact for signalling at distance
• Rated operational voltage 230 V or 400 V
• Rated frequency 50/60 Hz
• 1 P, 2 P, 3P and 4 P versions available
• DIN Rail mount
• Screw connection
• IP20 protection
• Operating temperature -25 °C to +50 °C
