HARTING Heavy Duty Power Connector Insert, 10A, Female, Han D Series, 8 Contacts | 09360083101

Name: HARTING Heavy Duty Power Connector Insert, 10A, Female, Han D Series, 8 Contacts | 09360083101
SKU: 1147-371
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 5 pcs

Mfr. Part No: 09360083101

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 1147-371 Categories: HARTING, Heavy Duty Power Connector Inserts & Modules

Description

Specifications

Attribute	Value
Brand	HARTING
Current Rating	10A
Gender	Female
Series	Han D
Type	Connector Insert
Voltage Rating	50 V
Number of Contacts	8
Body Orientation	Straight

Product Details

Han® 8D(U) Inserts

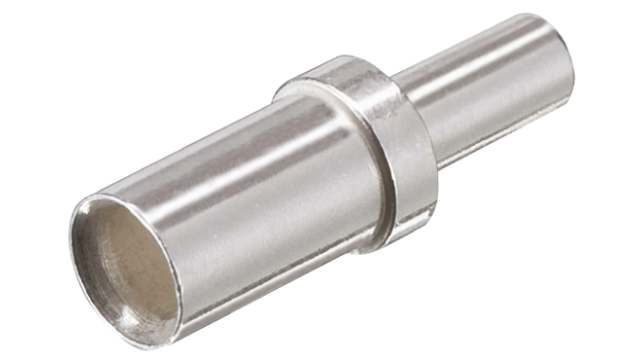

• Han 8D Insert (stock nos. 363-8591 & 363-8608) uses crimp contacts these contacts must be ordered separately. See stock no. 114-7857 – typical of selection

• For crimp tooling see stock no 114-7706 – typical of selection

• All dedicated tooling is detailed within the Han® D Range

• New Han-Quick Lock® inserts allow quick termination without screws or crimping. (stock nos. 700-8073 & 700-8076)

Note

Illustration for inserts not currently available(they are similar in appearance to Han® D insert). The line drawing depicts the contact platform.

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection

Approvals

UL, CSA, SEV

Han® 8D 10A Crimp Series

These Han® 8D (U) inserts are rated for use up to 10A. They are intended for use with hoods and housings contained within range 1. This hood and housing range is associated to a specific Harting ‘Size’ number identifier. See the ‘compatibility’ table for details of this relationship, and stock numbers of hoods and housings that are typical of this range.
