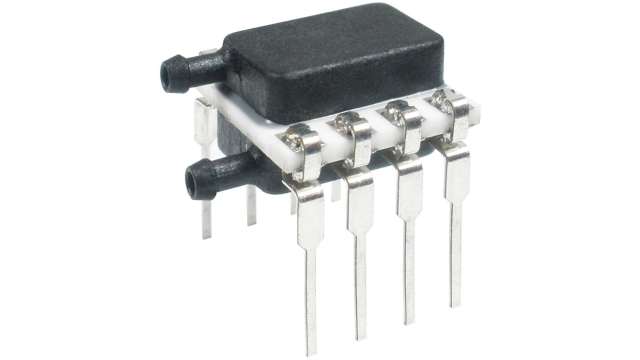

Honeywell ABP2DDAN001PD2A3XX Differential Pressure SensorThrough Hole 6 DIP | ABP2DDAN001PD2A3XX

Name: Honeywell ABP2DDAN001PD2A3XX Differential Pressure SensorThrough Hole 6 DIP | ABP2DDAN001PD2A3XX
SKU: 0218-912
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 8 pcs

Mfr. Part No: ABP2DDAN001PD2A3XX

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 0218-912 Categories: Honeywell, Pressure Sensor ICs

Description

Specifications

Attribute	Value
Brand	Honeywell
Product Type	Differential Pressure Sensor
Maximum Overload Pressure	206.84kPa
Sensor Type	Piezoresistive Pressure Sensor
Mount Type	Through Hole
Package Type	DIP
Pin Count	6
Minimum Supply Voltage	1.8V
Maximum Operating Pressure	6.89 kPa
Maximum Supply Voltage	3.6V
Accuracy	±0.25 %
Port Type	Dual Axial Barbed
Maximum Operating Temperature	110°C
Standards/Approvals	No
Width	6.3 mm
Series	ABP
Height	7mm
Length	7.3mm
Minimum Operating Pressure	600Pa
Automotive Standard	No
Minimum Operating Temperature	-40°C

Product Details

The Honeywell ABP2 Series are piezoresistive silicon pressure sensors offering a digital output for reading pressure over the specified full scale pressure span and temperature range.It has a pressure range of 1 psi. This products are designed and manufactured according to ISO 9001 standards.

Liquid media option compatible with a variety of liquid media

Long-term stability as low as ±0.2 %FSS

Accuracy ±0.25 %FSS BFSL

Wide pressure range ±6 mbar to ±12 bar | ±600 Pa to ±1.2 MPa | ±2 inH2O to ±175 psi

High burst pressures

Wide operating temperature range of -40°C to 110°C [-40°F to 230°F]
