Honeywell Piezoresistive Pressure SensorThrough Hole 8 DIP | HSCDRRN005NDAA5

Name: Honeywell Piezoresistive Pressure SensorThrough Hole 8 DIP | HSCDRRN005NDAA5
SKU: 3669-622
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 11 pcs

Mfr. Part No: HSCDRRN005NDAA5

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 3669-622 Categories: Honeywell, Pressure Sensor ICs

Description

Specifications

Attribute	Value
Brand	Honeywell
Product Type	Piezoresistive Pressure Sensor
Maximum Overload Pressure	2.94kPa
Sensor Type	Piezoresistive Pressure Sensor
Mount Type	Through Hole
Package Type	DIP
Pin Count	8
Minimum Supply Voltage	3.3V
Maximum Operating Pressure	0.049 kPa
Accuracy	±0.25 %
Port Type	Dual Radial Barbed
Maximum Supply Voltage	5V
Maximum Operating Temperature	85°C
Width	13.3 mm
Standards/Approvals	No
Series	HSC
Height	13.75mm
Length	10mm
Minimum Operating Pressure	-5in/H2O
Automotive Standard	No
Minimum Operating Temperature	-20°C

Product Details

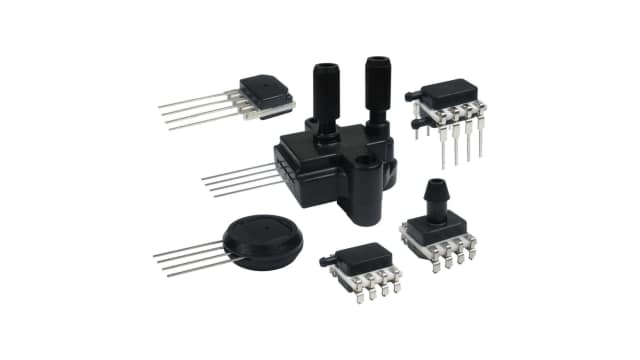

The Honeywell HSC series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. The HSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non linearity using an on board Application Specific Integrated Circuit. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc.

Promotes system reliability and reduces potential system downtime

Allows ultra low pressure sensors to be used continuously well above the calibrated pressure range

Detects most internal failures including burst sensors

Enables extended battery life
