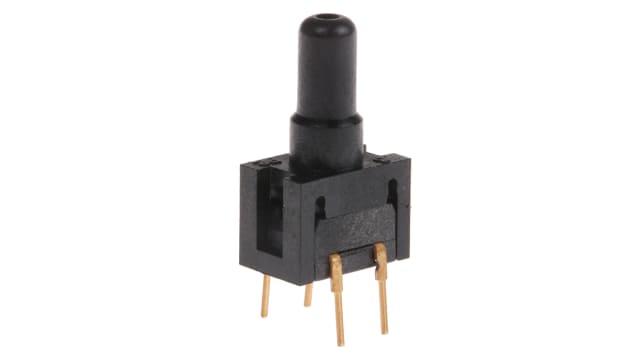

Honeywell Piezoresistive Pressure SensorThrough Hole 8 DIP | SSCDRRN010NDAA5

Name: Honeywell Piezoresistive Pressure SensorThrough Hole 8 DIP | SSCDRRN010NDAA5
SKU: P2579-622
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 6 pcs

Mfr. Part No: SSCDRRN010NDAA5

Đánh giá: ⭐⭐⭐⭐⭐

SKU: P2579-622 Categories: Honeywell, Pressure Sensor ICs

Description

Specifications

Attribute	Value
Brand	Honeywell
Product Type	Piezoresistive Pressure Sensor
Sensor Type	Piezoresistive Pressure Sensor
Maximum Overload Pressure	3.43kPa
Mount Type	Through Hole
Package Type	DIP
Pin Count	8
Minimum Supply Voltage	3.3V
Maximum Operating Pressure	0.09 kPa
Port Type	Dual Radial Barbed
Accuracy	±0.25 %
Maximum Supply Voltage	5V
Maximum Operating Temperature	85°C
Height	13.75mm
Width	13.5 mm
Standards/Approvals	No
Series	SSC
Length	10mm
Minimum Operating Pressure	-10in/H2O
Automotive Standard	No
Minimum Operating Temperature	-40°C

Product Details

The Honeywell SSC series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non linearity using an on board Application Specific Integrated Circuit that is ASIC.

Avoids additional customer calibration

Helps to improve system efficiency

Promotes system reliability and reduces potential system downtime

Detects most internal failures including burst sensors

Enables extended battery life.
