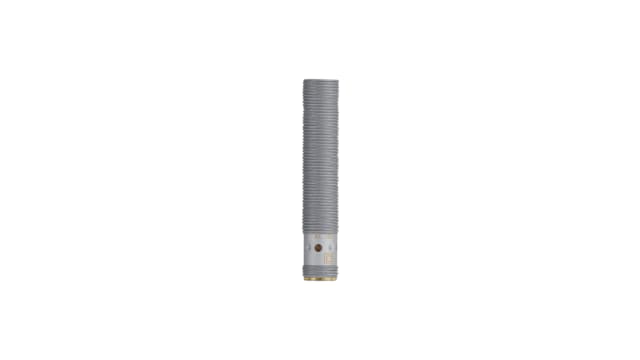

ifm electronic Si5010 Series, Threaded Flow Controller, 3000 cm³/s, PNP Output, 18 mm Pipe 36 V | SI5010
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 15 pcs
Mfr. Part No: SI5010
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | ifm electronic |
| Product Type | Flow Controller |
| Maximum Flow Rate | 3000cm³/s |
| Terminal Type | M12 Connector |
| Control Output | PNP |
| Display Screen | LED |
| Mount Type | Threaded |
| Maximum Pipe Diameter | 18mm |
| Minimum Operating Temperature | -25°C |
| Maximum Supply Voltage | 36V |
| Maximum Operating Temperature | 80°C |
| Standards/Approvals | CSA, CE |
| Hazardous Area Certification | No |
| Series | Si5010 |
| Current Rating | 250 mA |
Product Details
ifm electronic Flow Indicator
The ifm electronic flow indicator can measures flow rate from 3cm³/s to 300cm³/s for liquid and from 200cm³/s to 3000cm³/s for gas. This indicator has an automatic adjustment to nominal flow and minimum flow via setting buttons or programming lin. It has a supply voltage rating ranges between 18VDC and 36VDC. It is an optical indication of nominal flow, overflow, underflow and flows stoppage via the LED display short-circuit proof, inverse polarity protected.
Features and Benefits
Fast reaction time (1 second to 2 seconds)
Adaptable to various process connections
All the parameters can also be set manually
Locking facility
Current consumption is greater than 60mA
Current rating is 250mA
Voltage drop is greater than 2.5V
Certifications
CE certified
UL listed
DIN EN 61000-6-2
DIN EN 61000-6-3
CRN certified
