ifm electronic Through Beam Photoelectric Sensor, Fork Sensor, >0.3 mm Detection Range IO-LINK | OPU200
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 9 pcs
Mfr. Part No: OPU200
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | ifm electronic |
| Sensor Style | Fork |
| Detection Type | Through Beam |
| Detection Range | >0.3 mm |
| Output Type | NPN/PNP |
| Electrical Connection | M8 3 Pin Connector |
| Maximum DC Voltage | 35V |
| Communication Protocol | IO-LINK |
| Terminal Type | Quick Disconnect |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 40 mA |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
| Housing Material | Die Cast Zinc |
| Standards Met | CE, cULus |
Product Details

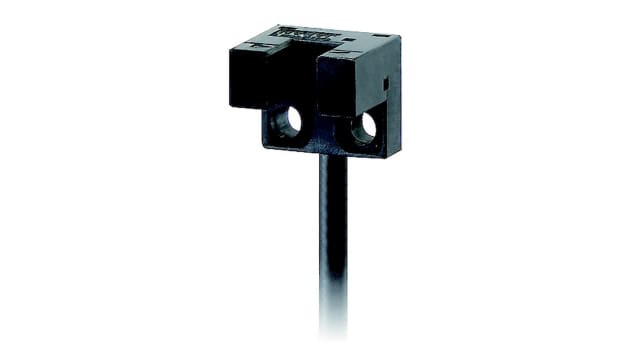

ifm OPU Optical Fork Sensors
ifm OPU series optical fork sensors with a robust metal housing offer quick setup with no need to align a transmitter and receiver. These optical sensors are used in particular for part monitoring in feeder and handling systems. Further application examples are belt edge or double feed monitoring with the exact sensitivity setting via potentiometer being helpful. The fine light beam with its constant small diameter is also ideal for monitoring shaft imbalance.
Features and Benefits
Metal housing reduces distortion
Quick setup: no need to align transmitter and receiver
Easy sensitivity setting via potentiometer
Light-on/dark-on mode via rotary switch
Across the whole fork width: fine and precise light beam
