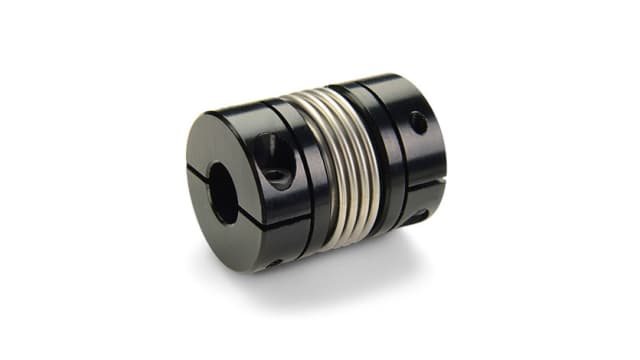

Omron, 22 mm OD Coupler | E69-C610B

Omron, 22 mm OD Coupler | E69-C610B

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 14 pcs

Mfr. Part No: E69-C610B

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 3700-547 Categories: Flexible Couplings, Omron

Description

Specifications

Attribute	Value
Brand	Omron
Product Type	Coupler
Outside Diameter	22 mm
Torque Rating	1Nm
Misalignment – Angular	6°
Misalignment – Parallel	0.5mm
Series	E69

Product Details

Omron E69 Series Coupler, 6mm Bore, 0.8/1Nm Torque Rating – E69-C610B

This coupler is suitable for high-precision applications in the automation and mechanical industries. With a bore size of 6mm and an outside diameter of 22mm, it has a length of 25.6mm. This product manages misalignments effectively, ensuring dependable coupling performance across various industrial tasks.

Features & Benefits

• Reduces angular misalignment up to 6° for enhanced performance

• Supports parallel misalignment of up to 0.5mm

• Lightweight design decreases the moment of inertia for greater efficiency

• Achieves a torque rating of 0.8/1Nm for robust coupling

• Offers torsional stiffness of 16/8.2Nm/rad for consistent operation

• Suitable for applications requiring precise motion control

Applications

• Connects motors to drives efficiently

• Used in robotic arm assemblies for precise movement

• Ideal for CNC machines to facilitate accurate operations

• Utilised in conveyor systems for seamless connectivity

Can it handle significant angular misalignment during operation?

Yes, it allows for angular misalignment up to 6°.

Will it minimise vibrations in rotating applications?

Yes, the design contributes to reduced vibrations.

Is it suitable for high-torque applications?

Yes, it has a torque rating of 0.8/1Nm.

Can it accommodate slight variations in parallel alignment?

Yes, it manages parallel misalignments of up to 0.5mm.

Is it effective in complex industrial setups?

Yes, it supports various applications that require precise coupling.
