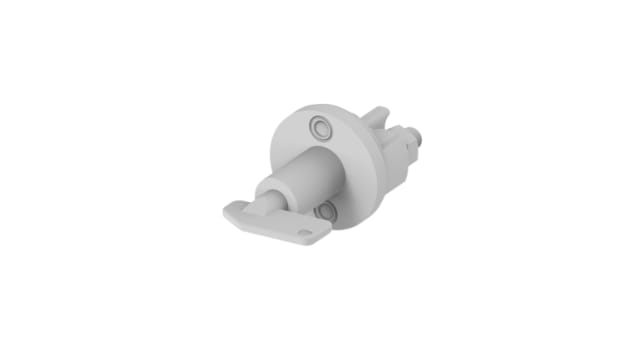

Otto R2, 2 Position DPST Rotary Switch, 20 A, Tab | R2AB2122NNNN
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 15 pcs
Mfr. Part No: R2AB2122NNNN
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Otto |
| Contact Configuration | DPST |
| Product Type | Rotary Switch |
| Series | R2 |
| Switch Contact Current | 20 A |
| Switch Operation | Maintained, Momentary |
| Number of Positions | 2 |
| Housing Material | Thermoplastic |
| Number of Poles | 2 |
| Depth | 1.68mm |
| Width | 1.68 mm |
| Maximum AC Voltage | 110V ac |
| Maximum DC Voltage | 28V |
| Minimum Operating Temperature | 85°C |
| Mount Type | Panel |
| Maximum Operating Temperature | -40°C |
| Switch Configuration | Off-On |
| Standards/Approvals | RoHS |
| Terminal Type | Tab |
| IP Rating | IP68S |
| Mechanical Life | 100000Cycles |
| Illuminated | Yes |
| Height | 58.67mm |
| Actuator Colour | Black |
Product Details
IP68 Rotary Switches, Otto R2 Series
Used in the heavy equipment, marine, process control and instrumentation markets, the Otto R2 rotary switch is an excellent
replacement for rocker switches, offering improved visual indication, additional lighting options and different styling on front panels. The R2 is a sealed, lighted rotary switch which snaps into a 1.475” x 0.875″ industry standard rocker switch panel cut-out.
The R2 rotary switch provides up to three positions in various combinations of momentary and maintained action. It is
capable of handling loads from logic level up to 20 amps resistive. Sealing is to IP68S via a shaft O-ring seal in front and a potted base in the back.
The R2 offers lighting options including up to three independent LED light positions which illuminate a lens on the rotary knob.
Rated 16A at 110Vac and 20A at 12/28Vdc
Connection via .250″ fast on terminals
Keyed connection pin
Black soft touch selector knob (apart from stock numbers 294-331 and 294-246 which are plain black)
