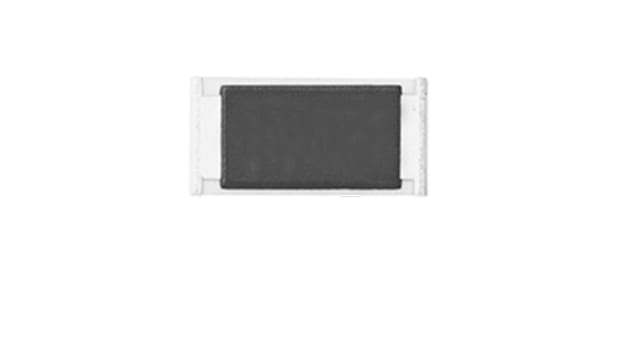

Panasonic 1-Element TVS Diode, 2-Pin 0402 | EZAEG2A50AX
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 6 pcs
Mfr. Part No: EZAEG2A50AX
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Panasonic |
| Diode Configuration | Single |
| Product Type | TVS Diode |
| Mount Type | Surface |
| Package Type | 0402 |
| Pin Count | 2 |
| Clamping Voltage VC | 100V |
| Minimum Operating Temperature | -55°C |
| Test Current It | 2A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | 125°C |
| Standards/Approvals | No |
| Series | EZAEG |
| Length | 1mm |
| Height | 0.38mm |
| Width | 0.5 mm |
| Automotive Standard | No |
| Maximum Reverse Leakage Current | 1μA |
Product Details
SMT Transient Suppressors – EZAEG Series
Panasonic EZAEG TVS diodes feature excellent ESD suppression characteristics and ESD protection of high-speed data lines. Constructed from alumina substrate with an ESD absorbent material and protective coating, these 0402 TVs diodes offer low capacitance of 0.05 pF.
Good ESD withstanding (contact 8 kV)
Low capacitance values
Applications
These TVS diodes are recommended for the suppression of high-speed data lines, including DisplayPort, USB, SATA, and antenna circuit types. Other suitable applications include RF modules, mobile phones, smartphones, GPS and NFC
