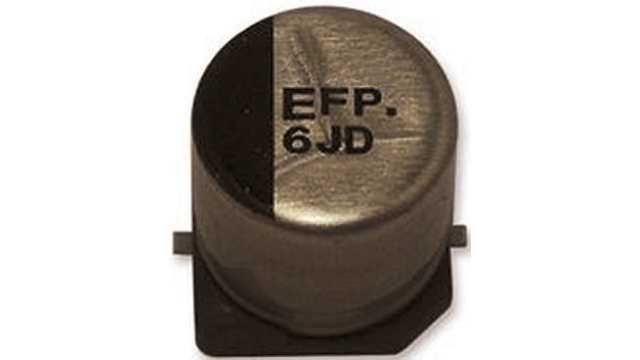

Panasonic 68 μF Surface Mount Polymer Capacitor, 35 V | EEHZA1V680XP
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 5 pcs
Mfr. Part No: EEHZA1V680XP
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Panasonic |
| Technology | Hybrid |
| Product Type | Polymer Capacitor |
| Capacitance | 68μF |
| Voltage | 35 V |
| Mount Type | Surface Mount |
| Polarity | Polar |
| Lead Pitch | 1.8mm |
| Tolerance | ±20 % |
| Maximum Operating Temperature | 105°C |
| Dimensions | 6.3 (Dia) x 7.7 mm |
| Series | ZA |
| Length | 7.7mm |
| Height | 7.7mm |
| Electrolyte Type | Hybrid |
| Leakage Current | 23.8μA |
| Ripple Current | 2000mA |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 12% |
| Automotive Standard | AEC-Q200 |
| Lifetime | 10000 h |
| Diameter | 6.3 mm |
Product Details
Panasonic Series ZA Polymer Capacitor, 68μF Capacitance, 35V DC Voltage – EEHZA1V680XP
This polymer capacitor is a hybrid component designed for surface mount applications. With dimensions of 6.3mm in diameter and 7.7mm in height, it offers reliable performance in various electronic circuits. Operating efficiently at voltages up to 35V DC, this capacitor is Ideal for applications requiring Compact and effective energy storage.
Features & Benefits
• Low Equivalent Series Resistance of 35 mΩ ensures minimal power losses
• Operates efficiently within a broad temperature range of -55 °C to +105 °C
• Designed with a capacitance Value of 68 μF for optimal performance
• Features a tolerable deviation of ±20% for increased reliability
• Capable of reducing leakage current to just 23.8 μA
• Meets stringent AEC-Q200 automotive standards for enhanced durability
Applications
• Ideal for energy storage in automotive electronic systems
• Utilised in power supply circuits for stabilisation
• Suitable for automated machinery in manufacturing environments
• Effective in filtering in electronic devices
What is the expected lifetime of this component under normal operating conditions?
This capacitor has a rated lifetime of approximately 10,000 hours when used within specified conditions, ensuring long-lasting performance in your applications.
How does the low Equivalent Series Resistance benefit circuit designs?
A low ESR minimises heat generation and power loss during operation, resulting in enhanced efficiency and reliability in electronic circuits.
What temperature variations can be tolerated by this component?
It can function effectively within temperature ranges from -55 °C to +105 °C, making it suitable for both low and high-temperature environments.
How does the capacitance Value influence its application?
The 68 μF capacitance provides sufficient energy storage, which is Crucial for applications that require quick charge and discharge capabilities, especially in electronic filtering or power supply circuits.
