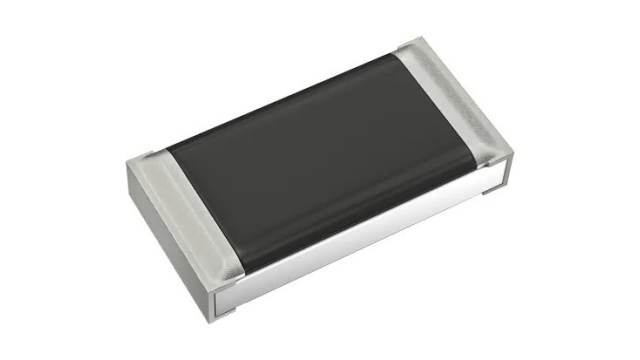

Panasonic ERJ PA2 820 Ω, 0402 Thick Film Surface Mount Fixed Resistor ±0.5 % Surface 0.2 W | ERJPA2D8200X

Name: Panasonic ERJ PA2 820 Ω, 0402 Thick Film Surface Mount Fixed Resistor ±0.5 % Surface 0.2 W | ERJPA2D8200X
SKU: P556-782
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 6 pcs

Mfr. Part No: ERJPA2D8200X

Đánh giá: ⭐⭐⭐⭐⭐

SKU: P556-782 Categories: Panasonic, Surface Mount Resistors

Description

Specifications

Attribute	Value
Brand	Panasonic
Resistance	820Ω
Product Type	Surface Mount Fixed Resistor
Technology	Thick Film
Package/Case	0402
Tolerance	±0.5 %
Packaging	Tape & Reel
Power Rating	0.2W
Temperature Coefficient	100 ppm/°C
Mount Type	Surface
Automotive Standard	AEC-Q200
Series	ERJ PA2
Pin Count	2
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	155°C
Length	1mm
Width	0.5 mm
Standards/Approvals	IEC 60115-8, JEITA RC-2134C, JIS C 5201-8
Height	0.40mm

Product Details

The Panasonic Anti-Surge Thick Film Chip Resistors are designed to offer superior ESD (Electrostatic Discharge) surge protection compared to standard metal film resistors. With a metal glaze thick film resistive element and three layers of electrodes, they provide high reliability and stability under demanding conditions. These resistors are suitable for both reflow and flow soldering processes, making them versatile for various manufacturing environments.

AEC-Q200 compliant

RoHS compliant
