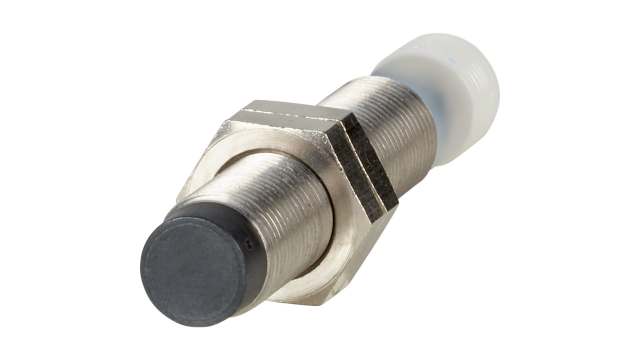

Pepperl + Fuchs Inductive Threaded Barrel Proximity Sensor, M12, 2 mm Detection, PNP NO, 10 → 30 V dc | NMB2-12GM55-E2-FE
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 4 pcs
Mfr. Part No: NMB2-12GM55-E2-FE
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Pepperl + Fuchs |
| Thread Size | M12 |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 2 mm |
| Digital Switching Output Type | PNP |
| Output Function | NO |
| Connection Type | Pre-Cabled |
| Cable Length | 2m |
| Supply Voltage | 10 → 30 V dc |
| Length | 55mm |
| IP Rating | IP69K |
| Mounting Type | Flush |
| Housing Material | Stainless Steel |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -40°C |
| Depth | 12mm |
| Switching Frequency | 100 Hz |
| Reverse Polarity Protection | Yes |
| Switching Current | 200 mA |
| Maximum Switching Frequency | 100Hz |
| Shielding | Shielded |
| Maximum Operating Temperature | +70°C |
| Short Circuit Overload Protection | Yes |
Product Details
Heavy-duty Sensors
Heavy-duty ferrous metal sensing inductive proximity sensors with stainless steel bodies; 3-wire DC operation
Stainless steel housing machined from solid
Metal sensing face
LED indication
Embeddable in mild steel
IP67 rating (IP68 for pre-wired types)
Resistant to abrasion and lubricants, grease, salt and water
Operating temperature range -25 to +70°C
Reverse polarity, short circuit and overload protected
Pre-wired types include 2m of PUR cable
Metal sensing face
LED indication
Embeddable in mild steel
IP67 rating (IP68 for pre-wired types)
Resistant to abrasion and lubricants, grease, salt and water
Operating temperature range -25 to +70°C
Reverse polarity, short circuit and overload protected
Pre-wired types include 2m of PUR cable
Standards
EN60947-5-2 EMC compliant
Pepperl + Fuchs
