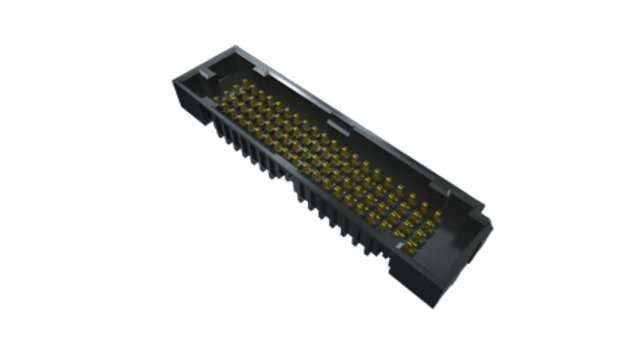

Samtec ASP Series Right Angle Surface PCB Socket, 560-Contact, 14 Row, 1.27 mm Pitch Solder | ASP-184329-01
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 13 pcs
Mfr. Part No: ASP-184329-01
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Samtec |
| Number of Contacts | 560 |
| Product Type | PCB Socket |
| Sub Type | Board-to-Board |
| Number of Rows | 14 |
| Pitch | 1.27mm |
| Current | 2.7A |
| Termination Type | Solder |
| Mount Type | Surface |
| Orientation | Right Angle |
| Connector System | Board-to-Board |
| Stacking Height | 0.404in |
| Voltage | 339 V |
| Series | ASP |
| Row Pitch | 1.27mm |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Maximum Operating Temperature | 125°C |
| Contact Material | Brush Alloy |
| Standards/Approvals | RoHS |
Product Details
The Samtec PCB socket of ASP series has solder termination method with surface mounting type and 14 number of rows.
Type: Board to Board
