Siretta SNYPER-IOT GRAPHYTE (GL) RF Detector 2.1 GHz | SNYPER-IOT GRAPHYTE (GL)
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 4 pcs
Mfr. Part No: SNYPER-IOT GRAPHYTE (GL)
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Siretta |
| Product Type | RF Detector |
| Maximum Frequency | 2.1GHz |
| Minimum Frequency | 700MHz |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Standards/Approvals | No |
| Length | 28mm |
| Weight | 246g |
| Height | 93mm |
| Width | 67 mm |
Product Details
SNYPER-IOT GRAPHYTE (GL)
The SNYPER-IoT Graphyte (GL) is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the LTE-Cat M, NB-IoT & 2G/GSM networks.
Features & Benefits
Enhanced cellular surveying & sequential logging of new and existing installations on Cat M, NB-IoT and 2G networks
User selectable survey logging options to determine most suitable & reliable mobile operator
Evaluate “preferred” MNO’s performance over time
Determines “hotspots” & assist with antenna alignment, through Siretta’s liveSCAN feature
Results are reported in CSV, graphical HTML format & Print to PDF
Save 1000’s of logged surveys with multiple liveSCAN logs
Additional Features
1 x SMA Female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
1 x Red LED charging indicator
1 x 2.4” Diagonal VGA 480 x 640 RGB TFT
Display: 80 degree viewing angle
Display Brightness: 700md/m2
1 x Tactile multifunction keypad
SNYPER-IoT Graphyte (GL) can save a large amount of surveys each with different logging options and all survey results can be downloaded to a PC and displayed in a HTML graphical format to clearly show the logged detail over the survey session. This can identify unreliable base-stations & intermittent cellular service which is not possible with spot surveys. The full breakdown for the HTML summary graphs are displayed in corresponding CSV files (Summary and full detail files).
The SNYPER-IoT Graphyte (GL) also incorporates Siretta’s leading liveSCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording
Physical Interfaces
1 x SMA Female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
1 x Red LED charging indicator
1 x 2.4” Diagonal VGA 480 x 640 RGB TFT
Display: 80 degree viewing angle
Display Brightness: 700md/m2
1 x Tactile multifunction keypad
Supplied Accessories
1 x 2M USB-C to USB-C cable

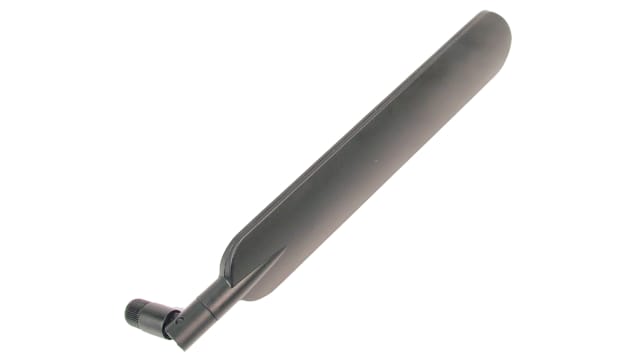

2 x Omnidirectional general-purpose antenna
1.5m extension cable (for use with LiveSCAN)

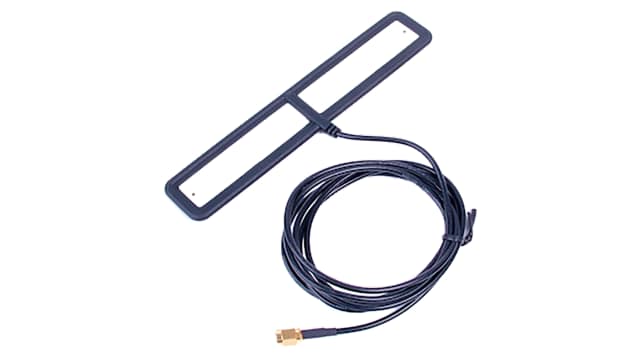

1 x LiveSCAN antenna
1 x Tripod stand
1 x Clip attachment for tripod stand
Certifications
CE
FCC
RoHS
Related products
Coaxial Adapters

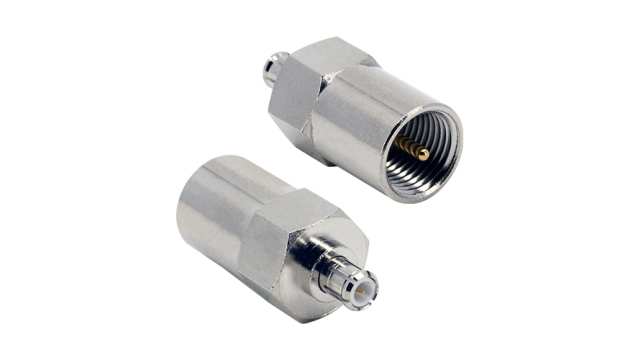

Siretta Straight 50 Ω RF Adapter 6 GHz Male Male | ADAPT/MCXM/FMEM
