Socomec TCA 14 Series Toroidal Ring Current Transformer, 40A Input, 40:5, 5 A Output | 192T1404

Name: Socomec TCA 14 Series Toroidal Ring Current Transformer, 40A Input, 40:5, 5 A Output | 192T1404
SKU: 6648-281
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 15 pcs

Mfr. Part No: 192T1404

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 6648-281 Categories: Current Transformers, Socomec

Description

Specifications

Attribute	Value
Brand	Socomec
Current Ratio	40:5
Series	TCA 14
Transformer Type	Toroidal Ring
Input Current	40A
Output Current	5 A
Overall Height	65mm
Overall Width	45mm
Overall Depth	8.5mm
Mounting Type	DIN Rail
Dimensions	45 x 30 x 65 mm
For Use With	Measurement Devices

Product Details

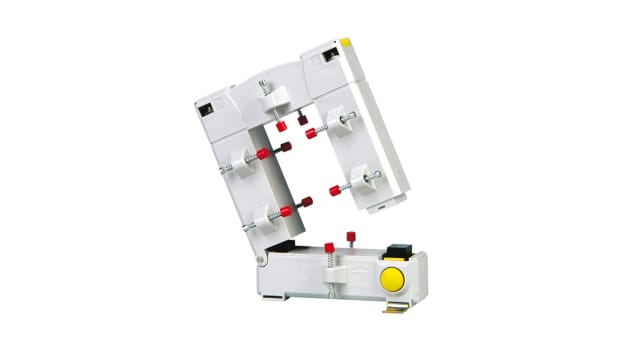

SOCOMEC current transformers deliver to the secondary a standard current proportional to the primary current and adapted to the rating of the associated device. They are equipped as standard with removable terminal covers and double terminals allowing the secondary to be short-circuited without any risk. They are mounted using two screw-on metal brackets or, in certain cases, by a clip-on DIN- rail fastener.

Advantages
An adapted accuracy class
In order to get the best of your DIRIS multifunction meters and COUNTIS energy meters, we can provide current transformers with the following accuracy classes: 0.2s, 0.5 , 1 or 3.
A wide range of ratings and dimensions
Quick and easy to mount
Our current transformers are adapted to any type of mounting: edgewise or flat mounting, DIN-rail or back-plate mounting. Implementation is easy and rapid.
