TE Connectivity CRGS 47 Ω, 1206 Thick Film Surface Mount Resistor ±5 % 0.6 W – CRGS1206J47R | CRGS1206J47R
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 13 pcs
Mfr. Part No: CRGS1206J47R
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | TE Connectivity |
| Product Type | Surface Mount Resistor |
| Resistance | 47Ω |
| Technology | Thick Film |
| Resistor Type | General Purpose |
| Package/Case | 1206 |
| Tolerance | ±5 % |
| Packaging | Tape & Reel |
| Voltage | 200 V |
| Power Rating | 0.6W |
| Temperature Coefficient | ±100 ppm/°C |
| Automotive Standard | No |
| Minimum Operating Temperature | -55°C |
| Series | CRGS |
| Maximum Operating Temperature | 155°C |
| Standards/Approvals | RoHS |
| Width | 1.55 mm |
| Height | 0.55mm |
| Termination Style | Solder |
| Length | 3.1mm |
Product Details
1206 Format CRGS Series Anti-Surge Thick Film Resistors
The TE Connectivity CRGS series of thick film resistors are lightweight and compact. With the ability to withstand high surges, these thick film chip resistors are suitable for autoplacement in most applications in large volumes. For the same case size, the power dissipation is double compared to the standard.
Features and Benefits
• Suitable for reflow and wave soldering
• Matte Sn finish over Ni
• Anti-surge
Related products
Chassis Mount Resistors
TE Connectivity, 47Ω 250W Wire Wound Chassis Mount Resistor HSC25047RJ ±5% | HSC25047RJ
1 ₫
1 ₫
Chassis Mount Resistors

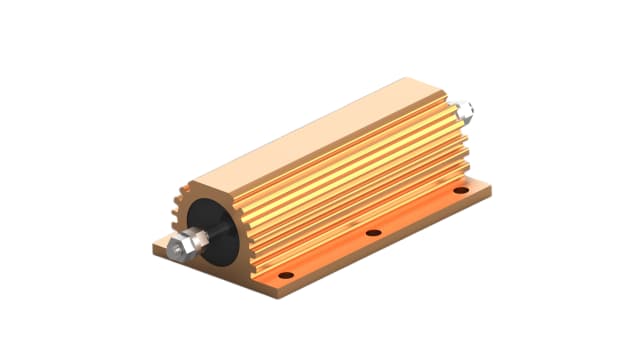

TE Connectivity, 15kΩ 400W Wire Wound Wire Wound Fixed Resistor HSHC40015KJ 5% | HSHC40015KJ
